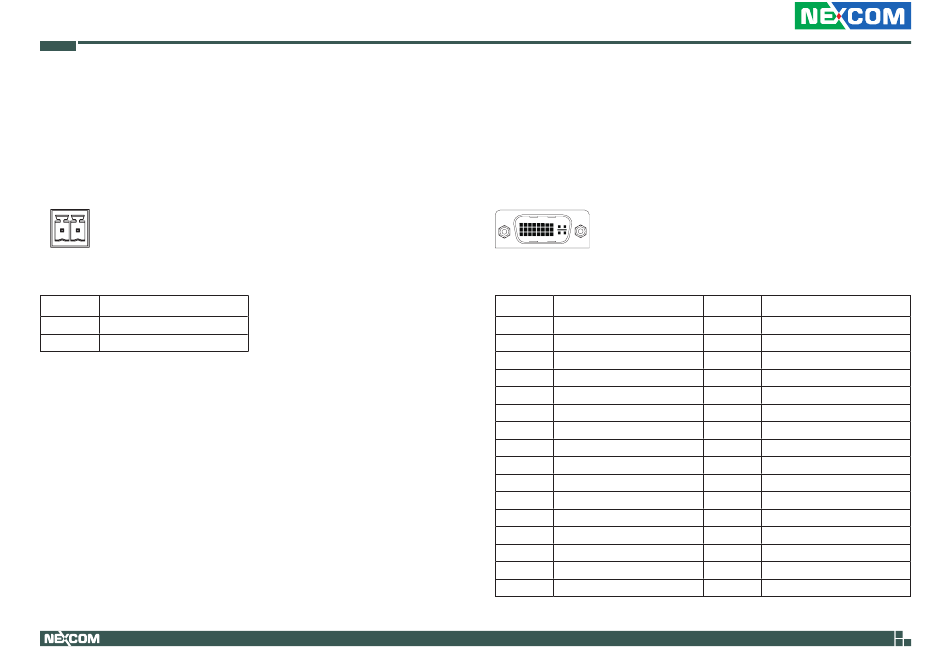

External I/O Interfaces - Rear Panel

Remote Power Button

Connector type: 2-pin switch
Connector location: JP1
2 1
Pin Definition
1 GND
2 REMO_PWRBTN#
Copyright © 2019 NEXCOM International Co., Ltd. All Rights Reserved.

DVI-I Connector

Connector type: 24-pin D-Sub, 2.0mm-M-180 (DVI)
Connector location: CN4
1 8
17 24
Pin Definition
1 TX2-
3 GND
5 NC
7 DDC_DATA
9 TX1-
11 GND
13 NC
15 GND
17 TX0-
19 GND
21 DDCDATA_VGA
23 TXCLK+
C1 RED
C3 BLUE
C5A VGADET
MH1 CHASSIS_GND
17
Pin Definition
2 TX2+
4 NC
6 DDC_CLK
8 VSYNC_VGA
10 TX1+
12 NC
14 DVI_VCC(+5V)
16 HotPlugDet
18 TX0+
20 DDCCLK_VGA
22 GND
24 TXCLK-
C2 GREEN
C4 HSYNC_VGA
C5B GND
MH2 CHASSIS_GND
