Chapter 2: Jumpers and Connectors

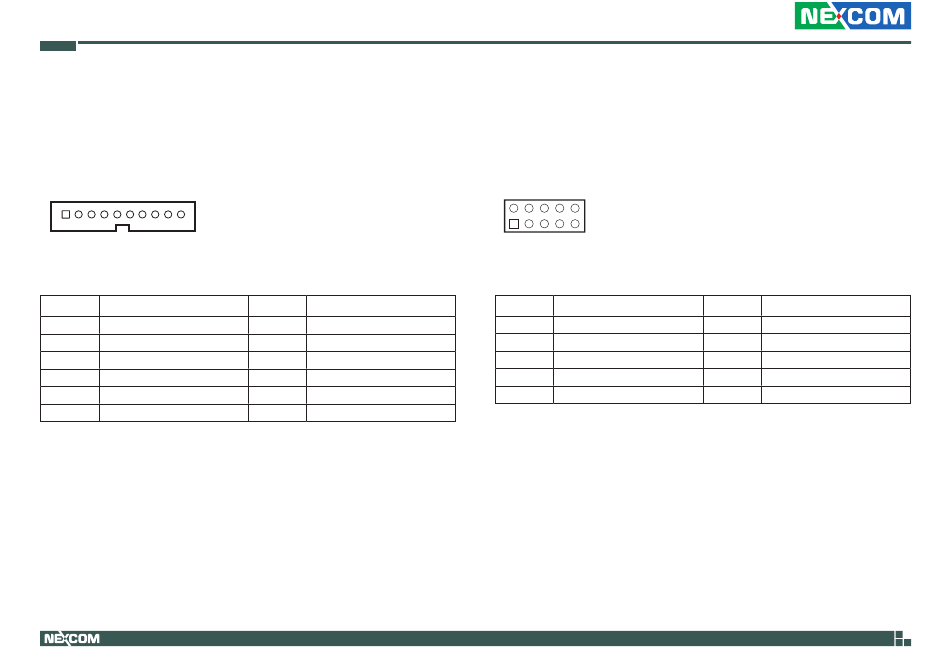

Port 80 Connector

Connector type: 10-pin header, 1.0mm pitch
Connector location: J1
1 1 1 0 10
Pin Definition
1 GND
3 LPC_CLK0_DEBUG
5 LPC_AD3
7 LPC_AD1
9 VCC3
MH1 GND
Copyright © 2019 NEXCOM International Co., Ltd. All Rights Reserved.
Pin Definition
2 PLTRST_3P3#
4 LPC_FRAME#
6 LPC_AD2
8 LPC_AD0
10 VCC3
MH2 GND

GPIO Pin Header

Connector type: 2x5 10-pin header, 2.0mm pitch
Connector location: JP6
2 10
1 9
Pin Definition
1 VCC5
3 ICH_GPO0_OUT
5 ICH_GPO1_OUT
7 ICH_GPO2_OUT
9 ICH_GPO3_OUT
23
Pin Definition
2 GND
4 ICH_GPI0_IN
6 ICH_GPI1_IN
8 ICH_GPI2_IN
10 ICH_GPI3_IN
