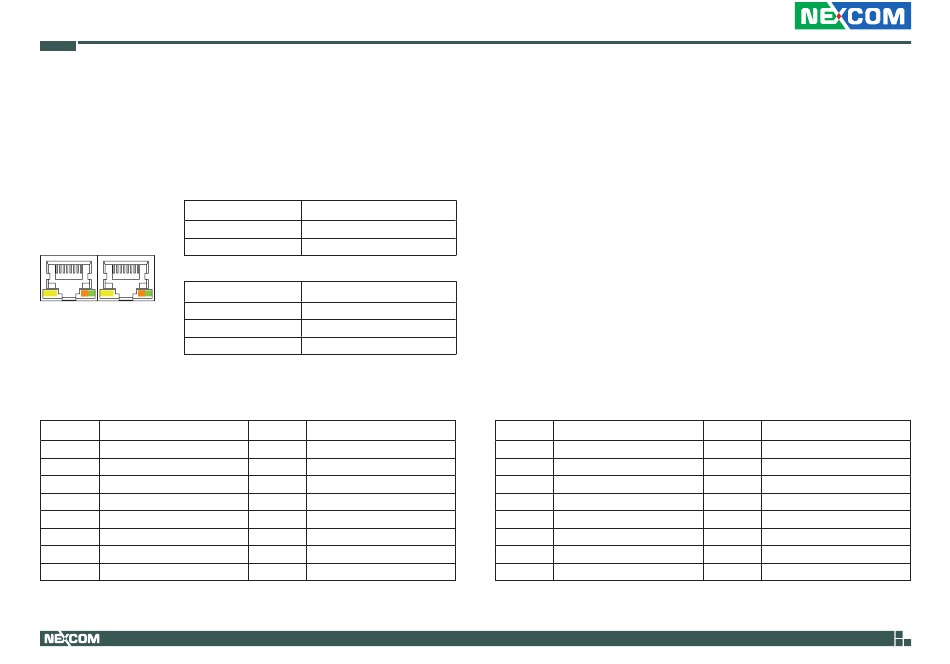

LAN1 and LAN2 Ports

Connector type: Dual RJ45 port with LEDs
Connector location: LAN1A (LAN1) and LAN1B (LAN2)
Flashing Yellow
LAN1 LAN2
A1 A8 B1 B8
ACT LINK ACT LINK
Steady Green
Steady Orange
LAN1
Pin Definition
A1 LAN1_MDI0P
A3 LAN1_MDI1P
A5 LAN1_MDI2P
A7 LAN1_MDI3P
A9 V1P5_LAN
A11 LAN1_LINK100#
A13 LAN1_LED_ACT#
MH1 CHASSIS_GND
Copyright © 2019 NEXCOM International Co., Ltd. All Rights Reserved.
Act Status
Data activity
Off No activity
Link Status
1G network link
100Mbps network link
Off No link
Pin Definition
A2 LAN1_MDI0N
A4 LAN1_MDI1N
A6 LAN1_MDI2N
A8 LAN1_MDI3N
A10 GND
A12 LAN1_LINK1G#
A14 3VSB
LAN2
Pin Definition
B1 LAN2_MDI0P
B3 LAN2_MDI1P
B5 LAN2_MDI2P
B7 LAN2_MDI3P
B9 V1P5_LAN2
B11 LAN2_LINK100#
B13 LAN2_LED_ACT#
MH2 CHASSIS_GND
13
Pin Definition
B2 LAN2_MDI0N
B4 LAN2_MDI1N
B6 LAN2_MDI2N
B8 LAN2_MDI3N
B10 GND
B12 LAN2_LINK1G#
B14 3VSB
