Chapter 2: Jumpers and Connectors

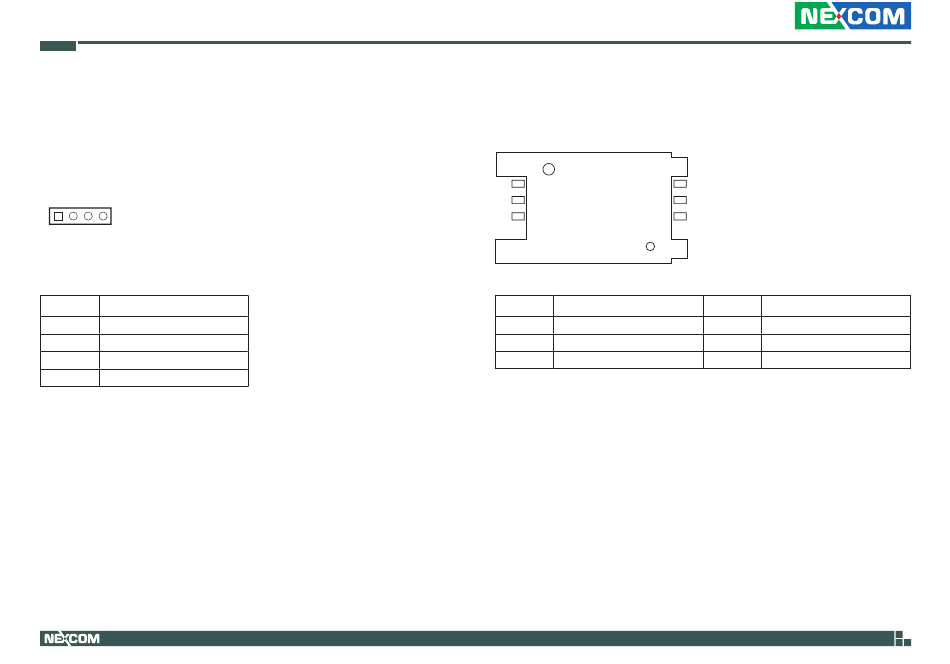

Flash MCU Pin Header
Connector type: 1x4 4-pin header, 2.0mm pitch
Connector location: JP7
1
4
Pin
Definition
1
3VSB
2
SBW_TCK
3
SBW_TDIO
4
GND
Copyright © 2019 NEXCOM International Co., Ltd. All Rights Reserved.
SIM Card Slot
Connector location: SIM1
C5
C6
C7
Pin
Definition
C1
UIM_PWR
C3
UIM_CLK
C6
UIM_VPP
25
C1
C2
C3
Pin
Definition
C2
UIM_RESET
C5
GND
C7
UIM_DATA
NISE 105U User Manual
