Chapter 2: Jumpers and Connectors

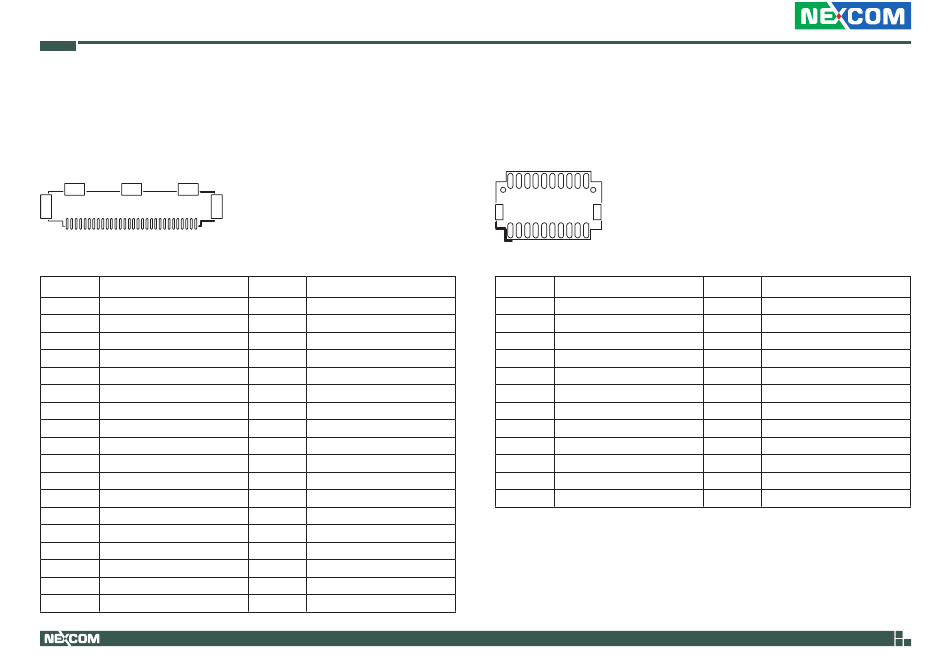

EDP1 Connector

Connector type: 1x30 30-pin header, 0.5mm pitch
Connector location: EDP1
30 1
Pin Definition
1 EDP_TX0N
3 GND
5 EDP_TX1P
7 EDP_AUXP
9 GND
11 EDP_SMB_DAT
13 EDP_HPD
15 EDP_BKL_EN
17 VCC3
19 VCC3
21 GND
23 VCC5
25 GND
27 EDP_12V
29 EDP_12V
MH1 GND
MH3 GND
MH5 GND
Copyright © 2019 NEXCOM International Co., Ltd. All Rights Reserved.
Pin Definition
2 EDP_TX0P
4 EDP_TX1N
6 GND
8 EDP_AUXN
10 EDP_SMB_CLK
12 GND
14 EDP_PWM_CTRL
16 PLTRST
18 VCC3
20 GND
22 VCC5
24 VCC5
26 GND
28 EDP_12V
30 GND
MH2 GND
MH4 GND

EDP2 Connector

Connector type: 2x10 20-pin header, 1.0mm pitch
Connector location: EDP2
2 20
1 19
Pin Definition
1 HUBUSB_DP3
3 HUBUSB_DN3
5 GND
7 HUBUSB_DP4
9 HUBUSB_DN4
11 GND
13 VCC3
15 VCC5
17 EDP_12v
19 EDP_12v
NH1 NA
MH1 GND
26
Pin Definition
2 GND
4 HUB_OC34
6 USB_DP3_GPIO
8 USB_DP4_GPIO
10 GND
12 3VSB
14 3VSB
16 5VSB
18 5VSB
20 GND
NH2 NA
MH2 GND
