Chapter 1: Product Introduction

Knowing Your NISE 105U

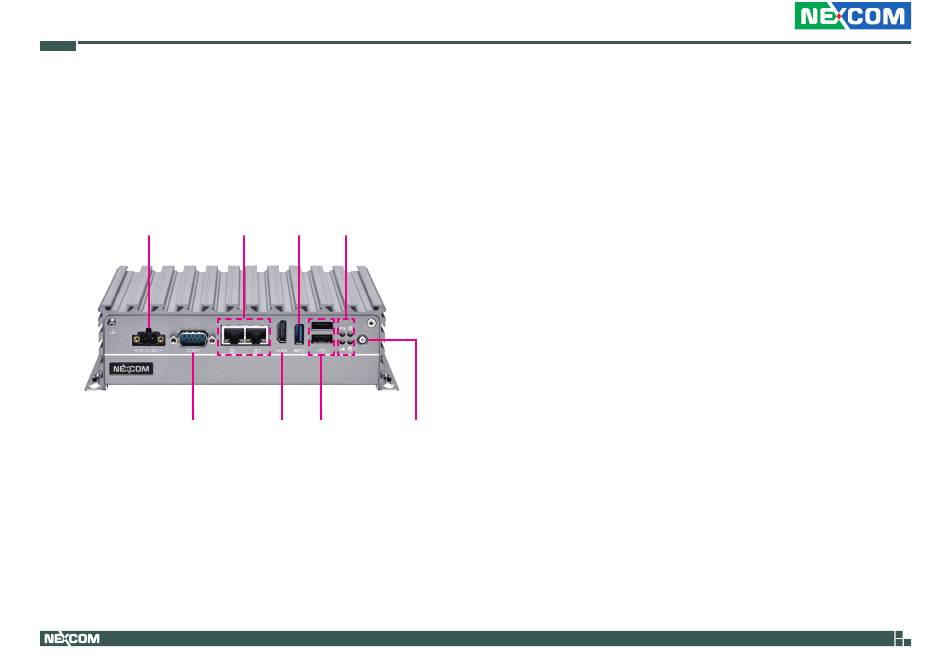

Front Panel

9-30V DC Input LAN1 & LAN2
COM1
Copyright © 2019 NEXCOM International Co., Ltd. All Rights Reserved.
USB 3.0 LED Indicators
HDMI USB 2.0 Power Switch
9-30V DC Input
Used to plug a DC power cord.
COM1
DB9 port used to connect RS232/422/485 compatible devices.
LAN1 & LAN2
Used to connect the system to a local area network.
HDMI Port
Used to connect a high-definition display.
USB 3.0 & USB 2.0
Used to connect the system with USB 3.0/2.0 devices.
LED Indicators
Indicates the power status, RTC battery status, storage activity and GPO
activity of the system.
Power Switch
Press to power-on or power-off the system.
