U.S. Robotics SureConnect ADSL Ethernet/USB Router User Guide
IP addresses deliver packets of data across a network. These addresses differentiate the
source and destination IP address and keep them constant. When a router port detects a
packet, the router checks the routing table. The port attempts to match the network number of
the destination IP address with its routing table entry. If the port finds a match, it forwards the
packet to the destination network. With no match, the port forwards the packet to a router
defined as the default gateway.
Subnet masks split one network into a set of mini networks or subnets. Subnetting helps to
reduce traffic on each subnet. Subnetting also makes the network more manageable. Each
subnet functions as if it were an independent network.
Main Menu=>Basic=>

USB Configuration

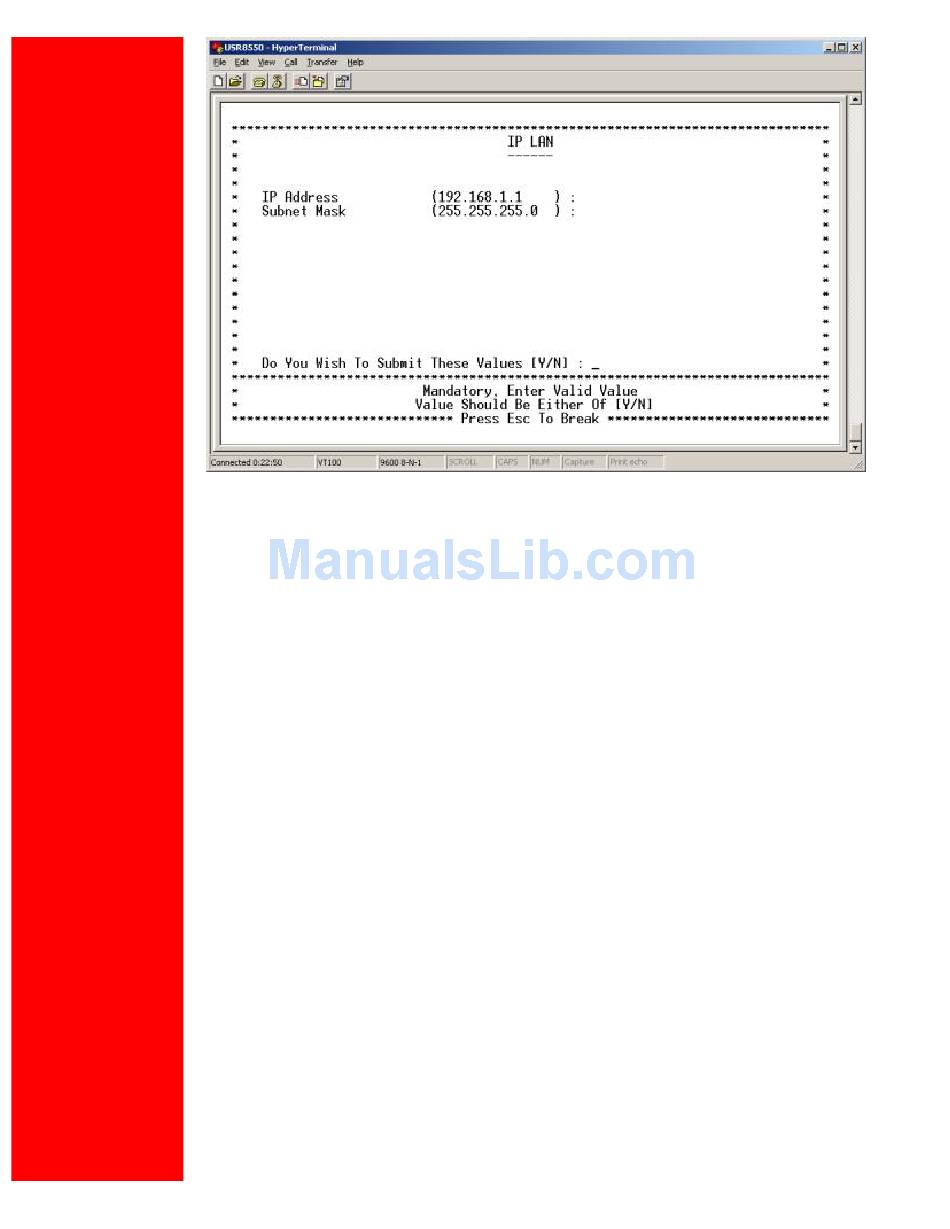

Enter 5 at the Basic Menu. The Configure USB Interface Menu appears. To configure the USB
interface...
file:///P|/T_WRITER/Documentation/Released/9003.../9003%20(Guiness)%20prac%20template/tquicks.htm (9 of 42) [11/6/2002 8:58:14 AM]
1. Enter a valid IP Address.
2. Enter a valid subnet mask.
3. After you complete your configuration, proceed to the Basic Menu and enter 8. The Save
& Reboot Menu appears. From this menu, save your changes and reboot the router.
