802.11g Wireless Gaming Adapter and Ethernet Bridge
Thank you for purchasing the U.S. Robotics 802.11g Wireless Gaming Adapter and
Ethernet Bridge (Model 5430). You can use your 5430 to online game through the
Internet so you can play anyone in the world. Or, you can use the 5430 as an Ethernet
bridge to connect any Ethernet device such as a computer, network printer, or digital
video recorder (DVR) to a wireless router. Finally, your 5430 may also be used to play
your friend in the same house or building provided you each have a gaming console of
the same brand (Xbox-to-Xbox, Playstation-to-Playstation, or other gaming console.

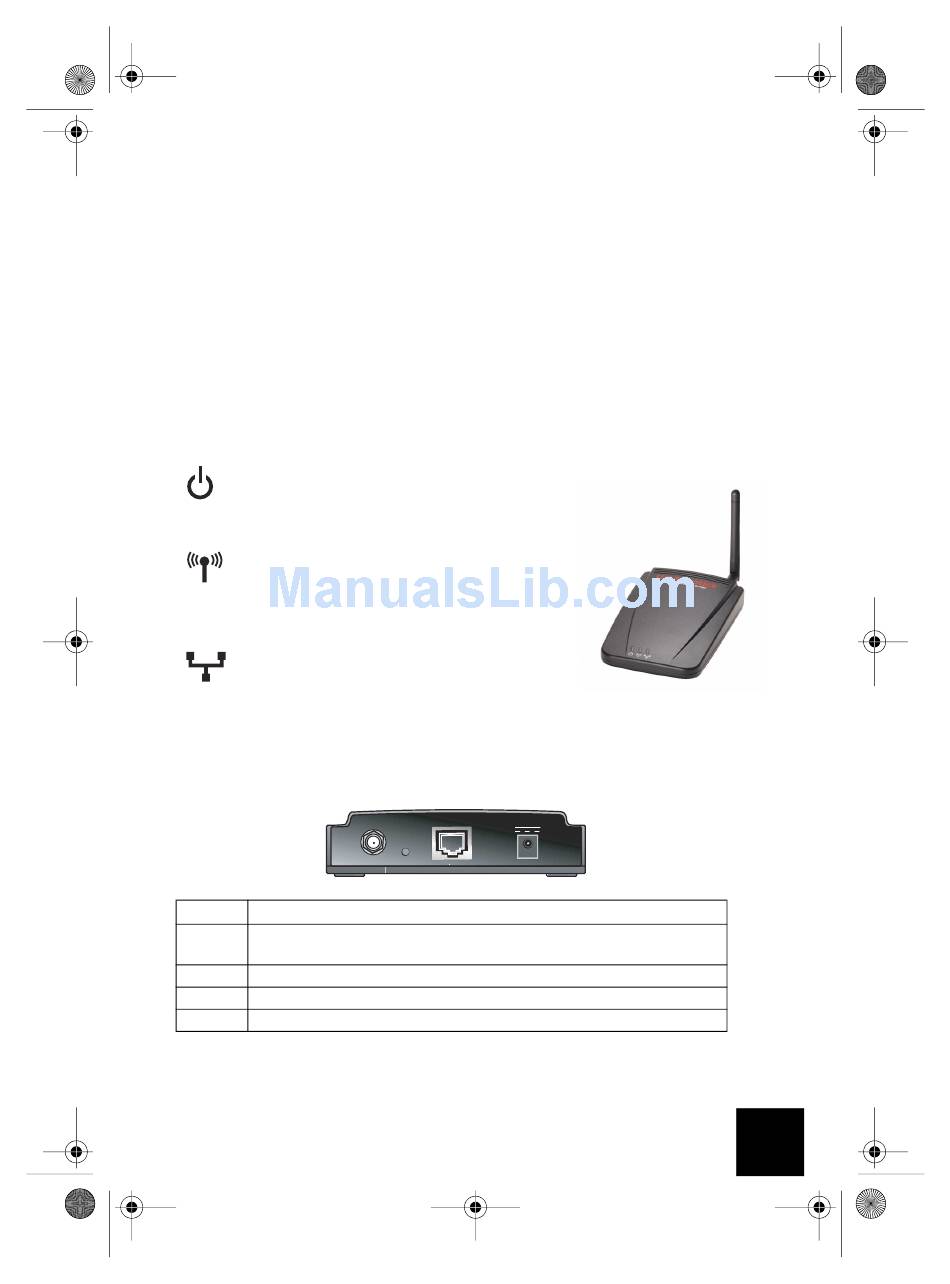

LED information
Power LED - Blue
Off = No Power
Solid = Power ON
Wireless LED - Blue
Off = No physical link
Solid = Physical link established (Wireless)
Flashing = Data Activity (Wireless)
Ethernet LED - Blue
Off = No physical link
Solid = Physical link established (Ethernet)
Flashing = Data activity (Ethernet)
Rear Panel information
Item
Description
Antenna
Use this port to connect your Antennat
port
Reset
Resets the bridge
Ethernet
Ethernet port for use with an Ethernet cable
5VDC
Input jack that accepts cable from AC power adapters
Ethernet
12VDC
Reset
1
