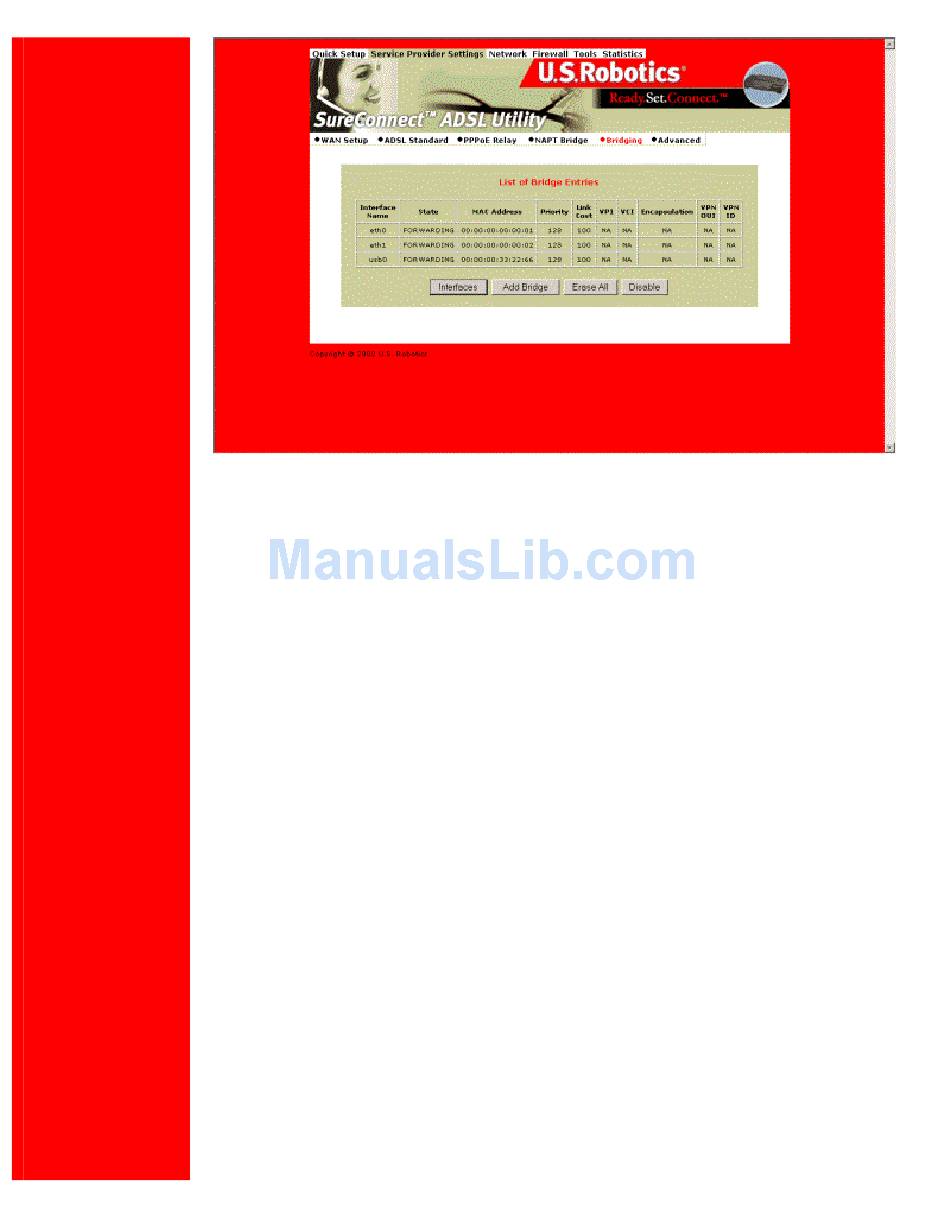

Bridging
You can group router LAN interfaces. Grouping allows forwarding of their Ethernet frames
to an ATM interface. The U.S. Robotics Ethernet/USB Router defaults to bridging on three
ports: ETH1, ETH2 and USB. The router bridges these ports to the atm0 interface or the
first PVC under WAN SETUP.
To change the grouping...
1. Click Erase All.
2. Click Interfaces.Choose the desired LAN Interfaces.
3. Click Apply.
