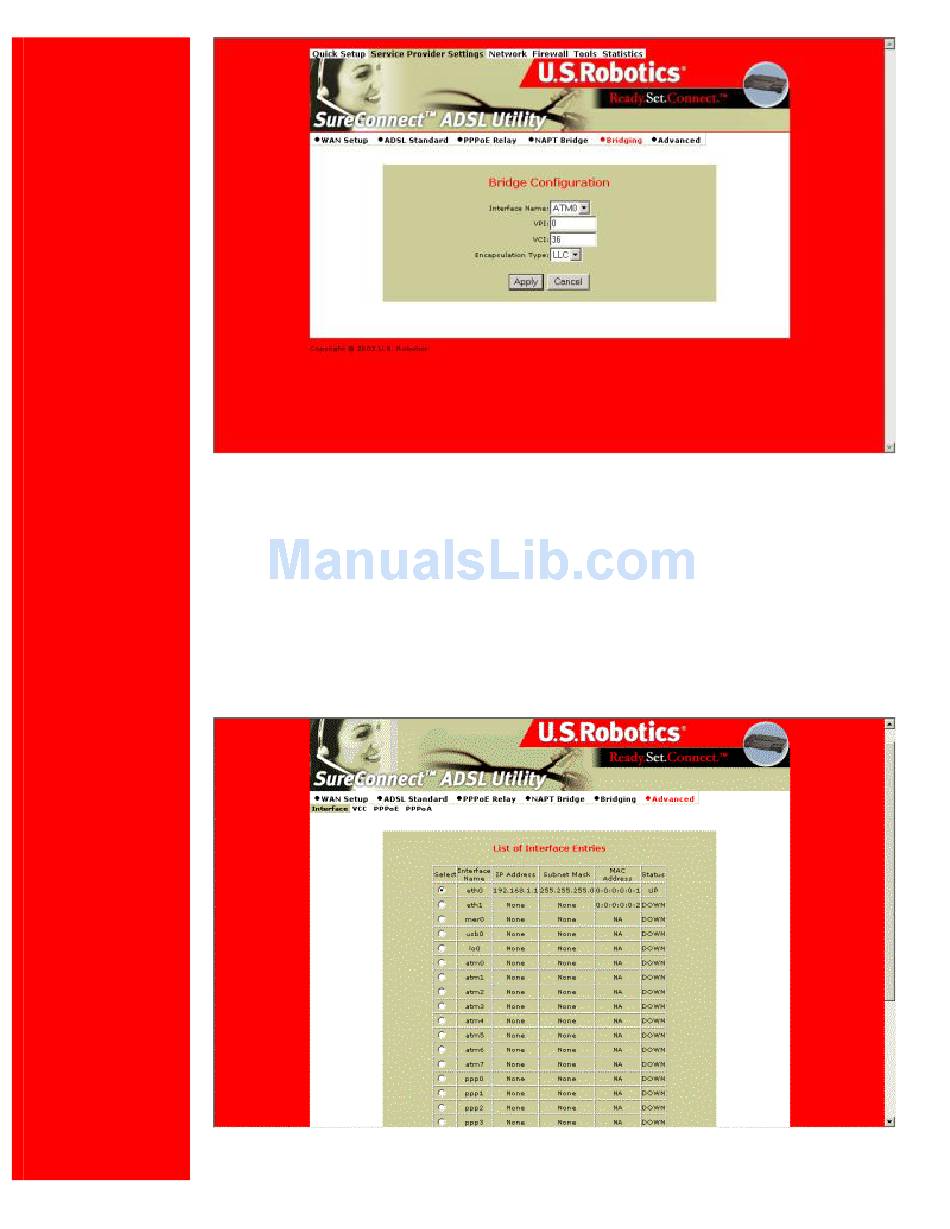

To bind the LAN Interfaces to an ATM interface, select "Add Bridge."
1. Select the ATM Interface from the Interface Name drop-down list.
2. Enter the VPI / VCI to which this ATM circuit belongs. Refer to WAN Setup for
information on setting up a bridged PVC.
3. Click Apply.
4. At the List of Bridge Entries, click Enable. This action activates packet forwarding.
