U.S. Robotics SureConnect ADSL Ethernet/USB Router User Guide
file:///P|/T_WRITER/Documentation/Released/900...ide/9003%20(Guiness)%20prac%20template/wui.htm (31 of 55) [11/6/2002 8:53:38 AM]
NAT=>Port Range Mapping
Click the NAT header and view the List of Port Range Entries. NAT port range mapping
allows the router to map public addresses and ports to private addresses and ports.

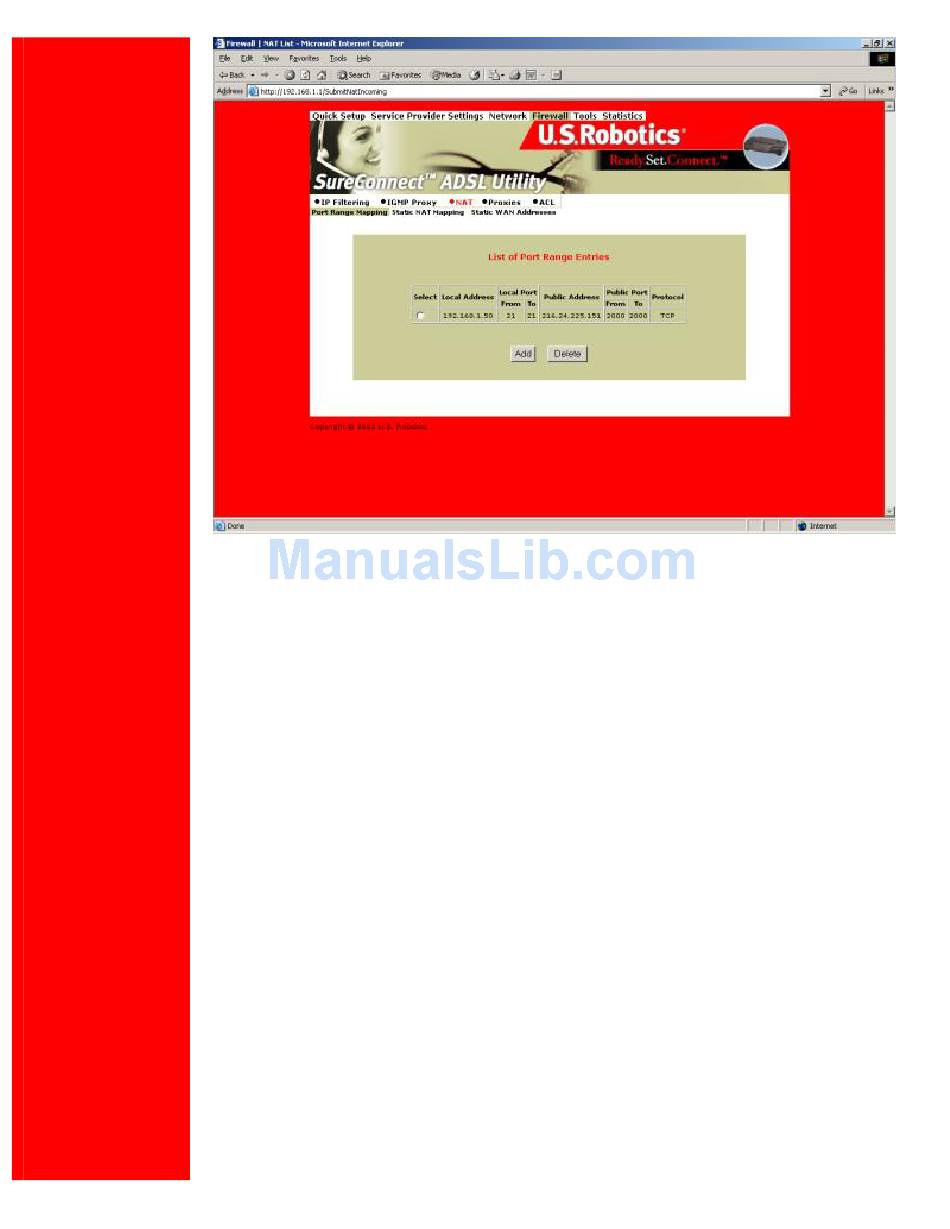

List of Port Range Entries
NAT stands for Network Address Translation. NAT enhances the power of Port Range
Mapping. Together, they can map a local IP address and port to a public IP address and
port.
To remove an entry...
1. Click the radio button beside the entry.
2. Click Delete.
To create a new Port Range entry: Click Add on the top screen. The Port Range
Configuration screen appears...
