US Robotics SureConnect U.S. Robotics SureConnect ADSL Ethernet/USB Router User Manual page 30

U.S. Robotics SureConnect ADSL Ethernet/USB Router User Guide
file:///P|/T_WRITER/Documentation/Released/900...ide/9003%20(Guiness)%20prac%20template/wui.htm (28 of 55) [11/6/2002 8:53:38 AM]
IGMP Proxy
Click the IGMP Proxy radio button and view the List of IGMP Proxy Entries.
List of IGMP Proxy Entries
This screen displays a list of IGMP Proxy entries.
IGMP (Internet Group Membership Protocol) is a protocol. IP hosts use IGMP to report their
multicast group memberships to immediately nearest routers.
To remove an entry...
1. Click the radio button beside the entry.
2. Click Delete.
To create a new IGMP Proxy entry, click Add. The IGMP Proxy Configuration screen
appears...

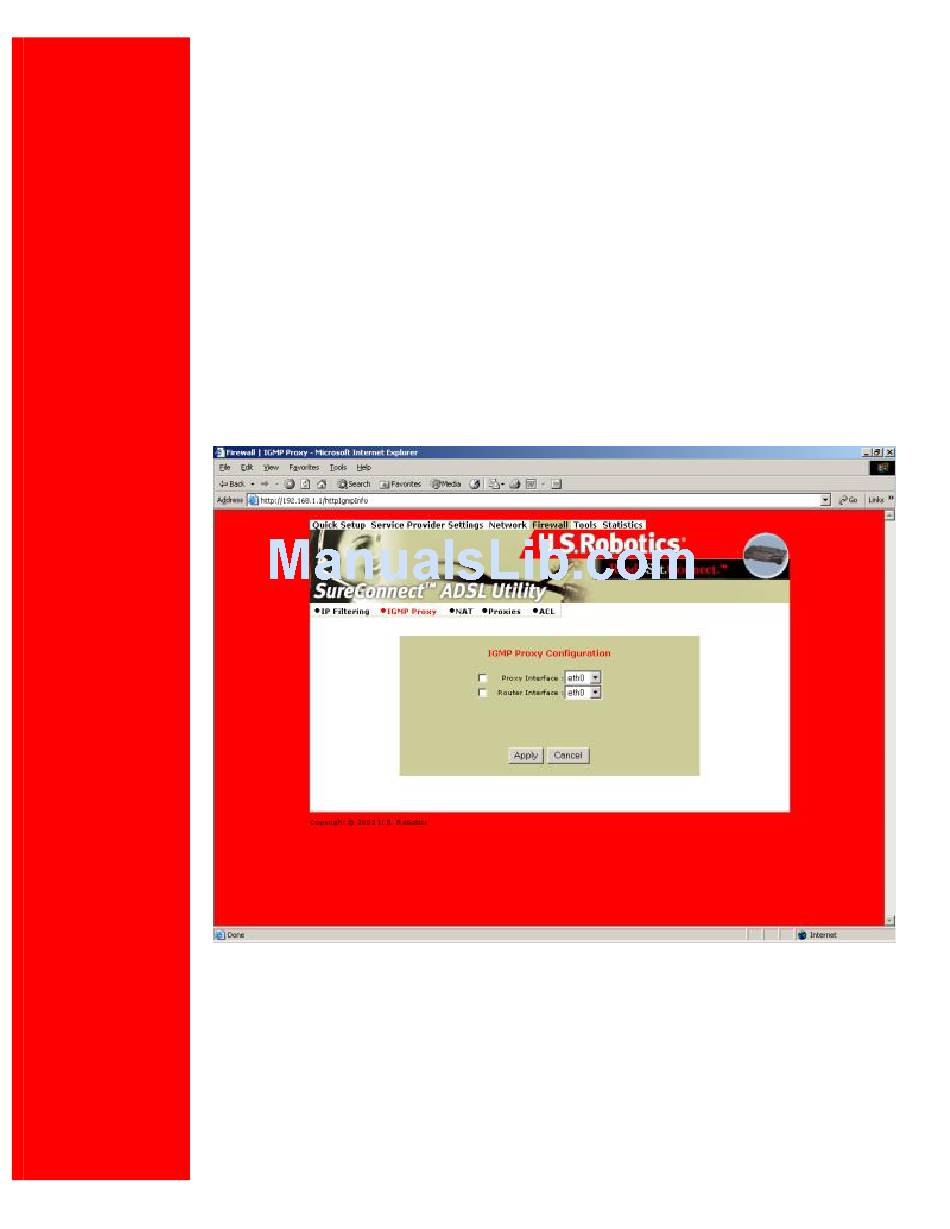

IGMP Proxy Configuration
On the IGMP Proxy configuration Screen, follow these steps to set up your IGMP proxy...
1. Select Proxy interface, router interface, or both: Check the box next to the interface.
2. Use the pull-down menu to the right to select the eth, usb, atm, or ppp Interface.
To save and install IGMP Proxy Configuration data...
