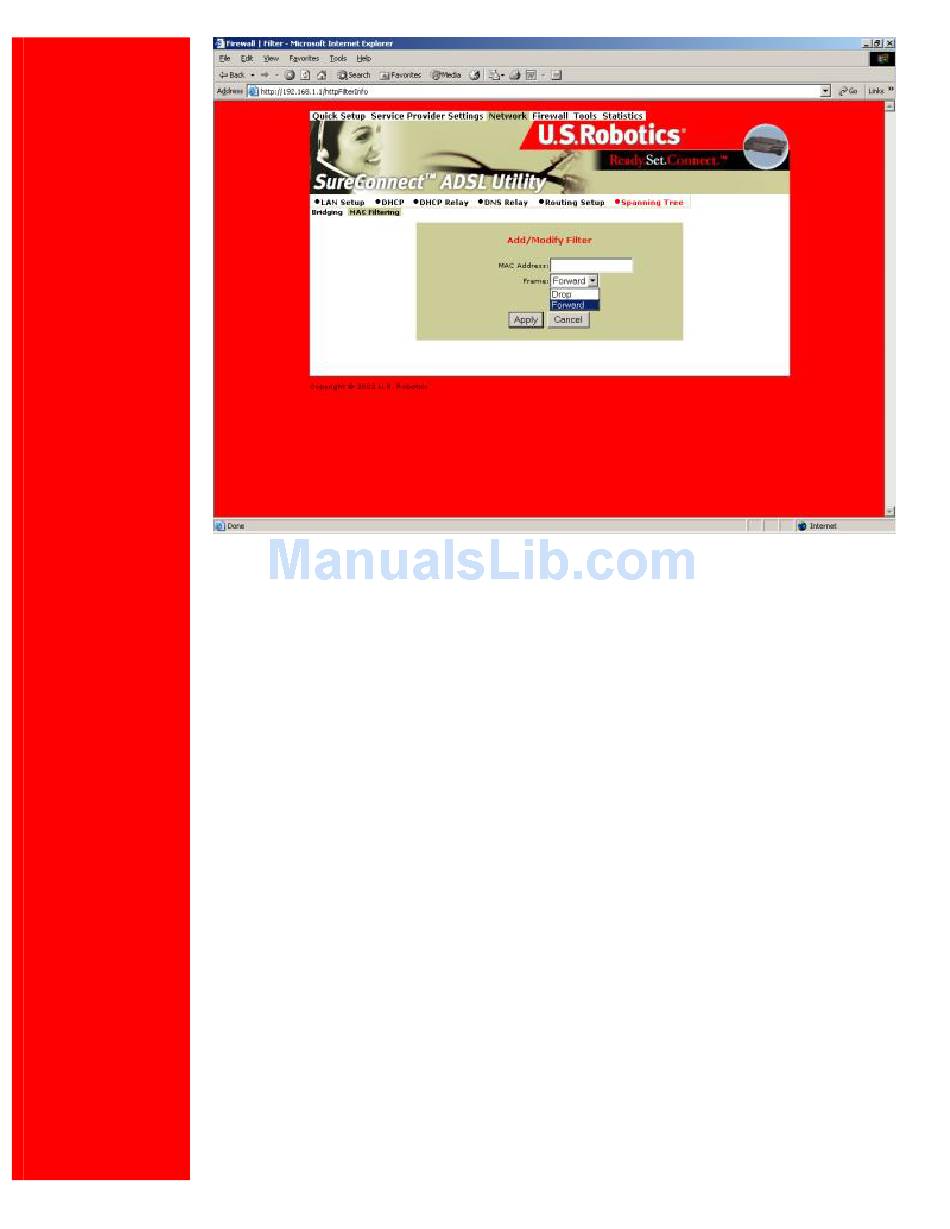

•MAC Address. Static MAC address to add to the table.
•Frame. What the router should do with a data frame from this MAC address. The options
are Forward or Drop.
To set the Add/Modify Filter information...
1. Input the information.
2. Click Apply.
To delete an entry from the List of MAC Address Filters...
1. Check the radio button to the left of the entry.
2. Click Delete.
To modify a MAC address in the List of MAC Address Filters, or to make the address
static...
1. Check the radio button beside the entry.
2. Click Modify.
3. Proceed by following the same steps as in Add.
To erase all non-static MAC addresses, click Erase All.
