IP Filtering
Click the IP Filtering header and view the List of Firewall Policies. The firewall's factory-
default setting is "Deny All." The router includes factory-configured policies that allow
access from LAN to WAN.

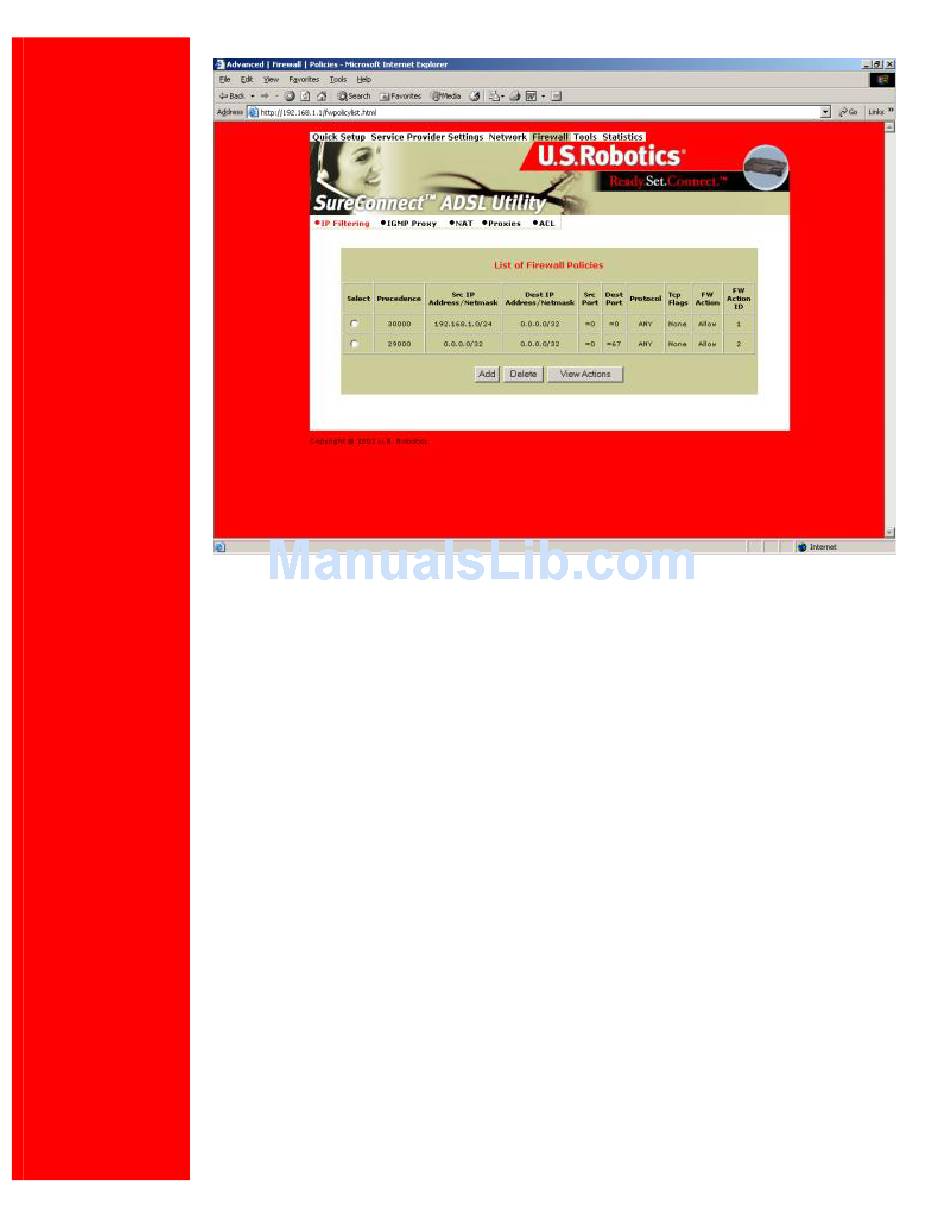

List of Firewall Policies
This screen displays the current list of firewall policies as defined in the router. The list
appears in table form.
To remove an entry...
1. Click the radio button beside the entry.
2. Click Delete.
To add new policies, click Add. The following screen appears:
