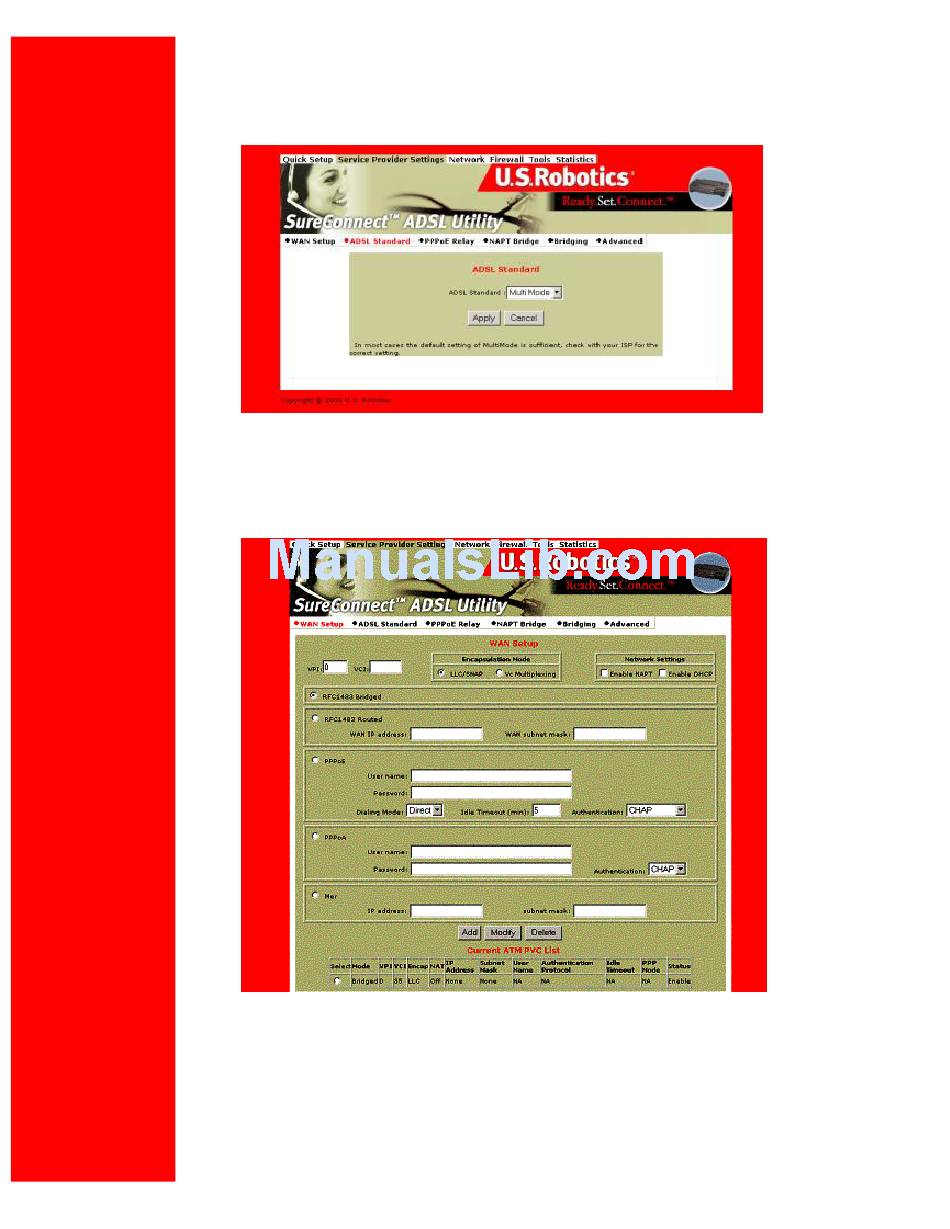

2. Click the Service Provider Settings tab. This tab is on the top of the screen. The Service
Provider Settings Window opens.
3. Click ADSL Standard. The ADSL Standard Window opens.
4. Select the ADSL protocol that you'll use. For most users, Multi Mode is the right choice.
5. Click Apply.
6. Click WAN Setup. The WAN Setup Window opens.
7.
Below the Add button, notice the Current ATM PVC List. On this list, select any PVC that you
don't need.
8.
Click Delete.
9.
Click RFC1483 Bridged.
