2. Click the Service
Provider Settings tab. This tab
is on the top of the screen.
(See Figure 1.)
3. Click ADSL Standard.
(See Figure 1.)
4. Verify that you've
selected Multi Mode. (See
Figure 2.)
5. Click WAN Setup.
6. Verify that only the
PPPoE configuration appears
on the Current ATM PVC List.
(See Figure 3.)
7. See the Current ATM
PVC List at the bottom of the
screen (Figure 3). On this list,
verify your settings for VPI
and VCI.
8. On the Current ATM
PVC List, see "Encap." Verify
your Encapsulation Mode
settings. (See Figure 3.)
9. On the Current ATM
PVC List, see "NAT." Verify
that NAT is "On." (See Figure
3.)
10. On the Current ATM
PVC List, verify your ISP-
assigned, PPPoE username.
(See Figure 3.)

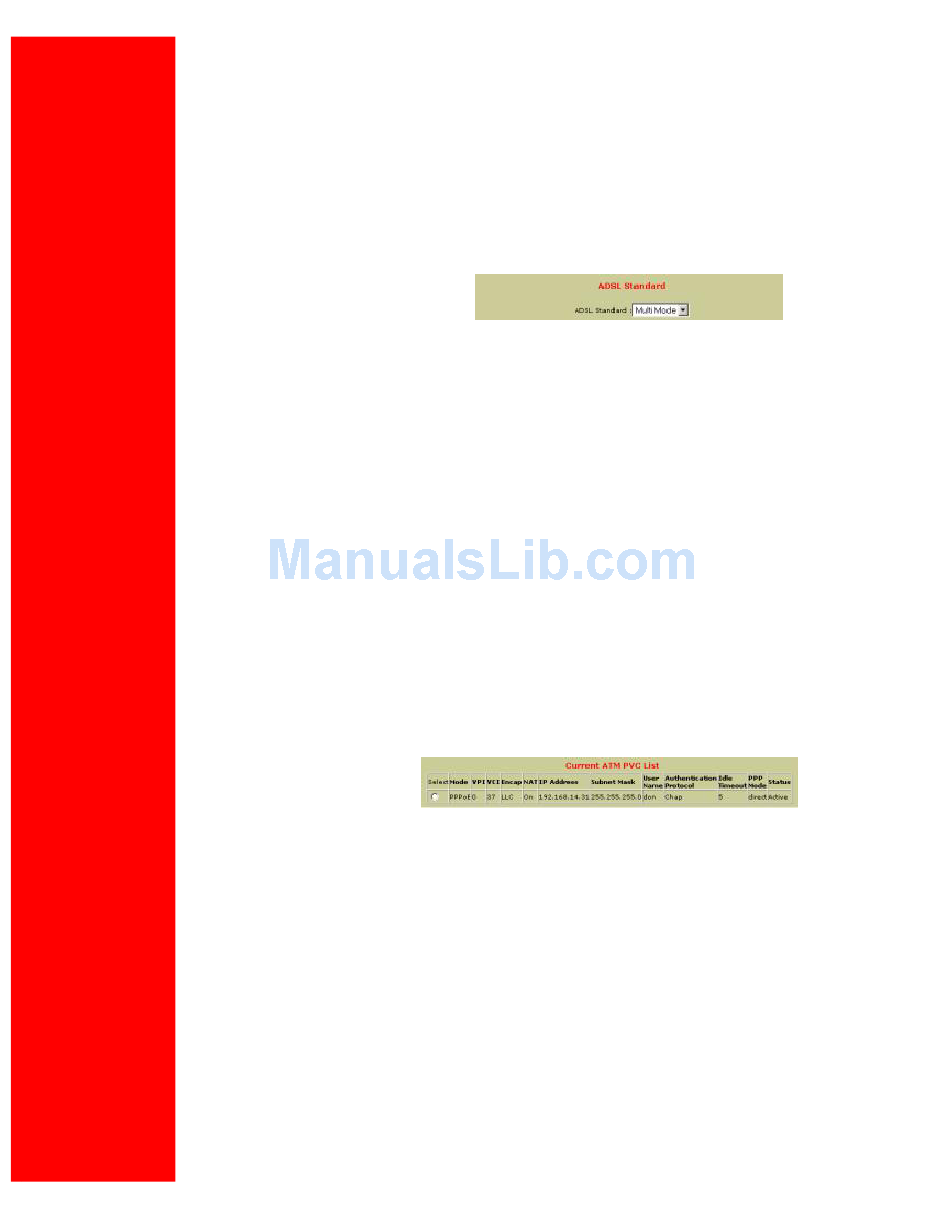

Figure 2
Figure 3
