US Robotics SureConnect U.S. Robotics SureConnect ADSL Ethernet/USB Router User Manual page 211

U.S. Robotics SureConnect ADSL Ethernet/USB Router User Guide
and ISP.
With PPPoE, the router achieves IP routing with Network Address Translation (NAT) for the LAN. The
PPPoE-enabled router also supports dynamic IP address assignment to local network nodes. With
dynamic assignment, the router acts as a DHCP server.
Setup
file:///P|/T_WRITER/Documentation/Released/900...%20(Guiness)%20prac%20template/configexamp.htm (16 of 33) [11/6/2002 9:00:35 AM]
Permits router signals to easily negotiate link and network parameters between the router
1.
Open the SureConnect Web User Interface (WUI). This example employs the Web
User Interface. You can set up the Network Model with any of the router's three interfaces. The
other two interfaces are the Terminal User Interface (TUI) and the Command-Line Interface
(CLI). In any case, succeeding steps are similar.

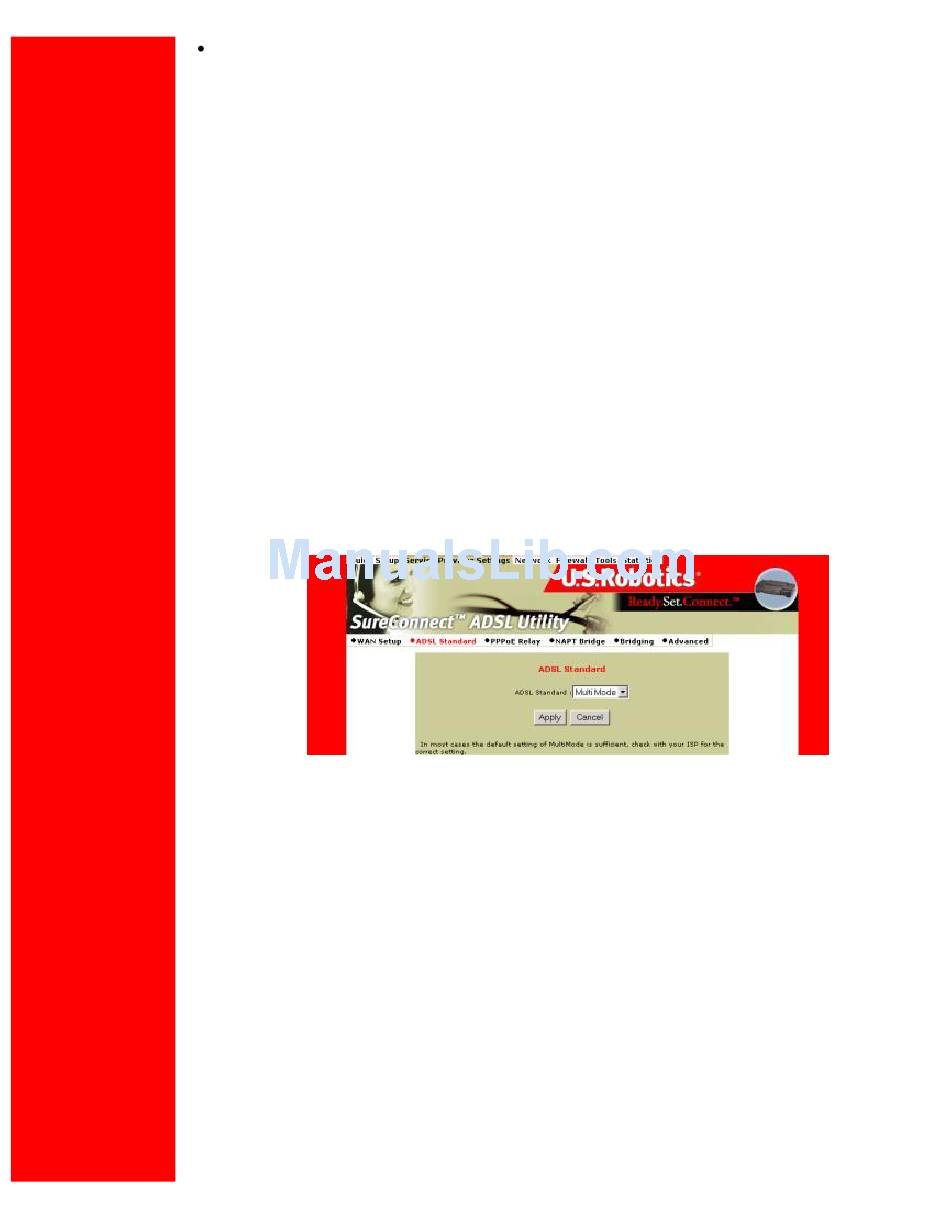

2. Click ADSL Standard. The ADSL Standard Window opens.
3. Select the ADSL protocol that you'll use. For most users, Multi Mode is the right
choice.
4. Click Apply.
5. Click WAN Setup. The WAN Setup Window opens.
