6. Verify that only the
Routed configuration
appears on the Current ATM
PVC List. (This is the list on
the bottom of the screen.
See Figure 3.)
7. See the Current ATM
PVC List at the bottom of the
screen (Figure 3). On this
list, verify your settings for
VPI and VCI.
8. On the Current ATM
PVC List, see "Encap." Verify
your Encapsulation Mode
settings. (See Figure 3.)
9. On the Current ATM
PVC List, see "NAT." Verify
that NAT is "Off." (See Figure
3.)
10. Click the Network tab at
the top of the window.
11. Click LAN Setup.
12. Verify your LAN IP
address setting. (See Figure 4.)
13. Verify your subnet setting.
(See Figure 4.)

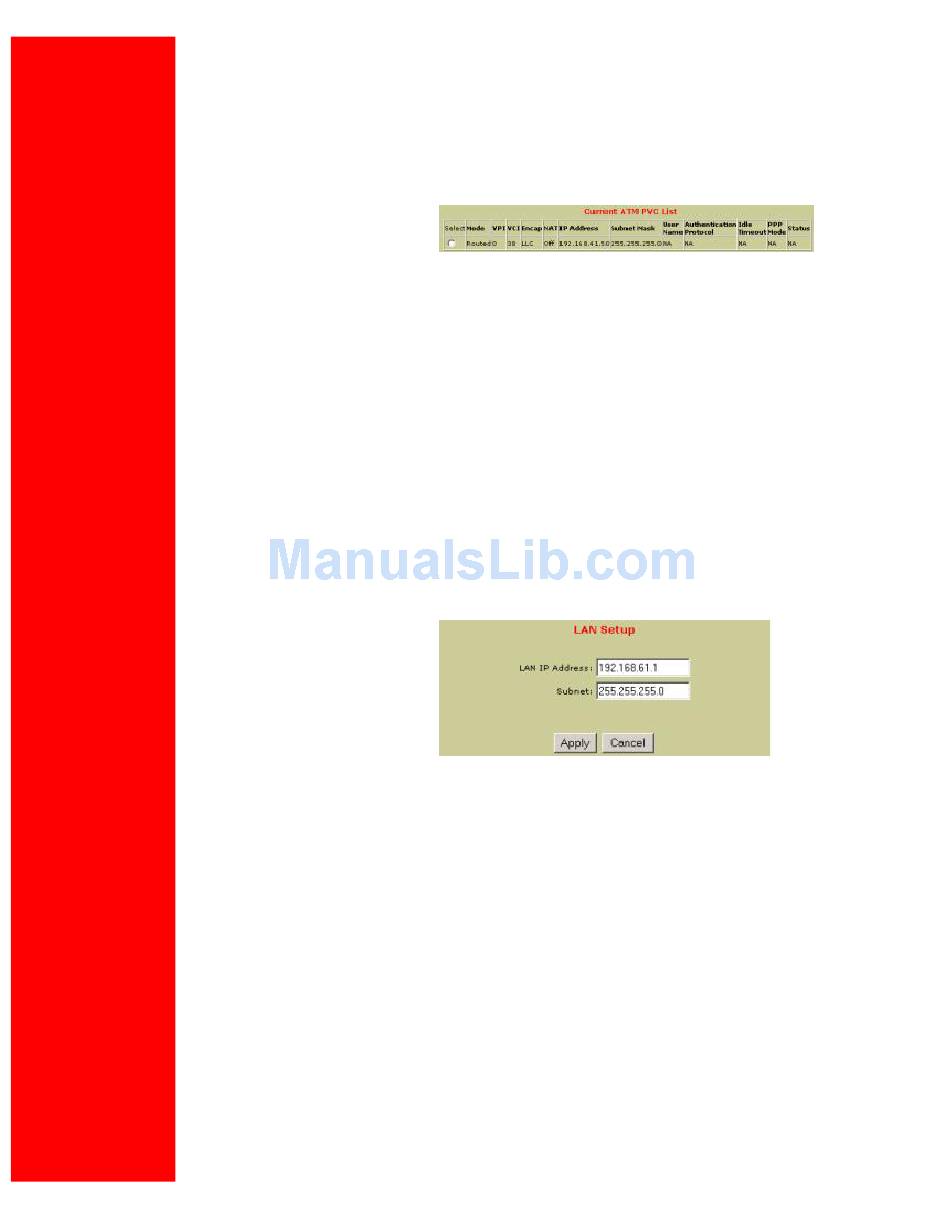

Figure 3
Figure 4
