• Power: 9W
• LAN: RJ45 connector will support IEEE802.3 Ethernet over copper wiring standards of 10Base-T, 100Base-TX,
and1000Base-T
• WAN: Gigabit Ethernet Combo RJ45+SFP connector:
• RJ45 connector will support IEEE802.3 Ethernet over copper wiring standards of 10Base-T, 100Base-TX,
and1000Base-T.
• SFP port will support 1000Base-X Fiber Ethernet standard SFP.
• Serial Ports.
• 1xRJ45 connector RS-232 port (DCE).
• 2xRJ45 connectors for RS-232 port (DCE) and/or RS-485 (2/4 wires). Its availability requires one additional ac-
cessory.
• WWAN: Depending on the model. ("L" models)
• 1xLTE Category 4 WWAN module with two SMA connectors.
• 2 Intenal SIM trays with 2FF form factor.
• External Reset/Recovery push button

2.4 Components

2.4.1 Front Panel

The front panel includes the status LEDs.

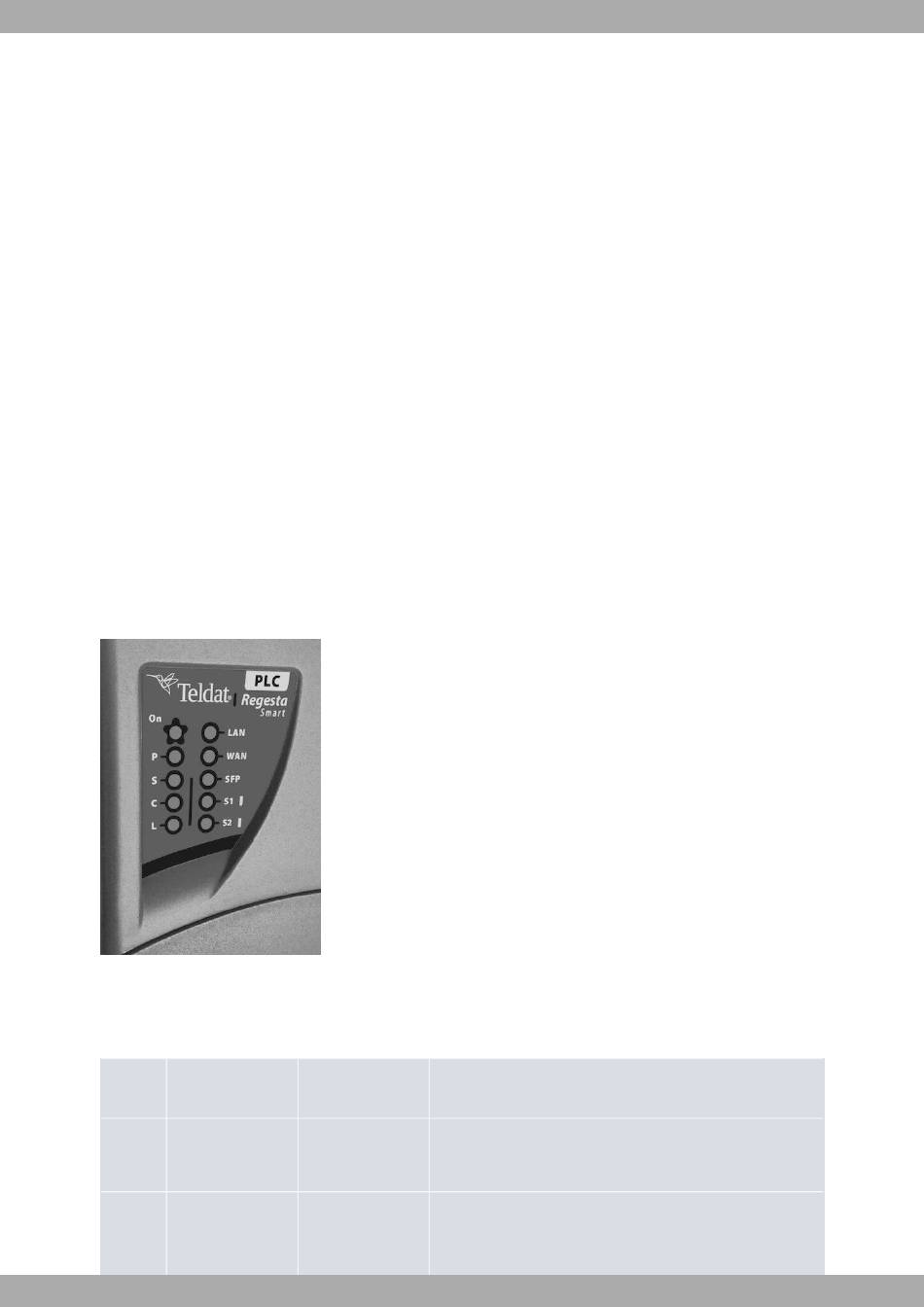

The following figure shows the front panel.
Front Panel
Fig. 3:
While the device is in startup mode, LED L lights up in green. Once the device has started up, the LEDs indicate the
following:
Table 2: LEDs
LED Associated Inter-
face
Power
ON
PLC interface
P
Regesta Smart PLC
Status Description
Off Device is not powered on.
Green Device is powered on.
Off PRIME PLC interface is disabled, unavailable or not installed.
PRIME PLC is running but no SNs are currently detected.
2 Product Overview
7
