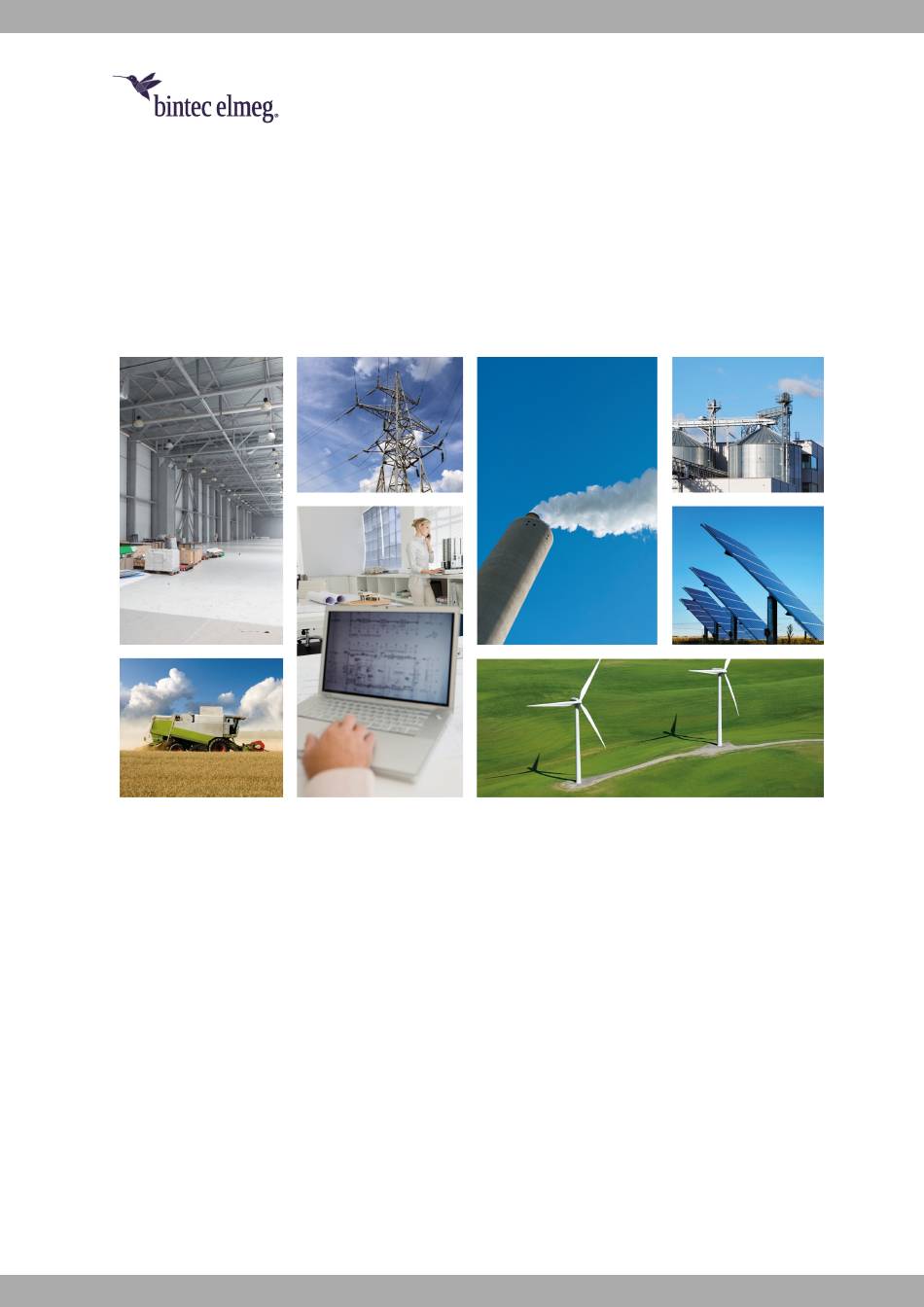

- Page 1 Manual Teldat S.A. Regesta PRO PLC Installation Manual Copyright© Teldat Dm692-I Version 0.9 1/2019 Teldat S.A. Regesta PRO PLC...
- Page 2 This publication is subject to change. Teldat S.A. offers no warranty whatsoever for information contained in this manual. Teldat S.A. is not liable for any direct, indirect, collateral, consequential or any other damage connected to the deliv- ery, supply or use of this manual.
-
Page 3: Table Of Contents
Table of Contents Teldat S.A. Table of Contents Related documents ....... . . 1 Chapter 1 About this manual . - Page 4 Table of Contents Teldat S.A. SIM card installation ....... . .
-
Page 5: I Related Documents
Related documents Teldat S.A. I Related documents Teldat Dm748-I Software Updating. Teldat Dm781-I Cellular Interface. Regesta PRO PLC... -
Page 6: About This Manual
Each chapter focuses on a specific part of the hardware and its components. Technical descriptions and information about the components can be found in the relevant chapter. 1.7 Technical support Teldat S.A. offers a technical support service. Firmware can be upgraded on a regular basis for maintenance pur- poses or to add new features. Contact information: Web: http://www.teldat.com... - Page 7 1 About this manual Teldat S.A. Email: support@teldat.com Regesta PRO PLC...
-
Page 8: Regesta Pro Plc Router
2 Regesta PRO PLC router Teldat S.A. Chapter 2 Regesta PRO PLC router 2.1 Features The Regesta PRO PLC router family is a range of IP routers specially designed for use in hostile and extreme envir- onments. The ruggedized mechanics and special characteristics of these routers, allowing them to resist extreme temperatures, makes them particularly suited for harsh industrial environments such as oil and gas, power and en- ergy and water, industrial telecontrol, etc. - Page 9 2 Regesta PRO PLC router Teldat S.A. For further information on the LED panel, please see LEDs on page 7. Regesta PRO PLC...
-
Page 10: Components And Power Supply
3 Components and power supply Teldat S.A. Chapter 3 Components and power supply This chapter describes the Regesta PRO PLC chassis and its main components. The following sections are in- cluded: • Components. • Assembly instructions. • Power supply. • RST button. - Page 11 3 Components and power supply Teldat S.A. 3.1.1.1 LEDs The LEDs are located on the front panel of the router as shown in the following image: Front panel LEDs Fig. 3: LED “L” lights up in green while the device is in startup mode. Once the device has started up, the LEDs indicate the...
-
Page 12: Rear Panel
3 Components and power supply Teldat S.A. • Steady: Data is not being transferred. • Blinking: Data is being transferred. Ethernet (LAN) in- Green ON -> Ethernet connection (link) established: terface • Steady: Data is not being transferred. • Blinking: Data is being transferred. -
Page 13: Upper Panel
3 Components and power supply Teldat S.A. Underside panel Fig. 5: The following components can be found on the underside panel: Underside panel components Item Description Inserts for attaching a DIN rail mounting bracket. For further information about this accessory, please see Attaching the DIN rail mounting bracket on page 10. -
Page 14: Assembly
3 Components and power supply Teldat S.A. Upper panel Fig. 6: The upper casing components are as follows. Upper casing components Items Description A, B, C, D Screws that allow you to disassemble the router’s upper casing. 3.2 Assembly 3.2.1 Attaching the DIN rail mounting bracket The Regesta PRO PLC comes with a special kit for mounting the device on a DIN rail. -
Page 15: Attaching The Safety Cover
3 Components and power supply Teldat S.A. DIN rail mounting bracket: Position 1 Fig. 7: DIN rail mounting bracket: Position 2 Fig. 8: 3.2.2 Attaching the safety cover The Regesta PRO PLC has a clear safety cover to prevent the connectors from being touched while the device is running. -
Page 16: Power Source
3 Components and power supply Teldat S.A. Attaching the safety cover Fig. 9: 3.3 Power source The Regesta PRO PLC router is powered by an external AC source. The nominal power voltages are 100-240 V AC. Note Please read the following instructions carefully before connecting the router! 3.3.1 Workplace conditions. -
Page 17: Connecting
3 Components and power supply Teldat S.A. 3.3.3 Connecting • Make sure that the router’s power supply switch is in the OFF position (0). • Ensure that the power supply is NOT connected to either the electricity supply or the router. -
Page 18: Restoring The Factory Default Settings
3 Components and power supply Teldat S.A. 3.4.2 Restoring the factory default settings Complete the following steps to reset the device with its factory default settings: (1) Press the RST button. Three LEDs (S, C and L) on the front panel light up in amber to indicate that the device is in reset mode. -
Page 19: Connecting The Serial Ports
3 Components and power supply Teldat S.A. Note The WWAN antennas should be connected to the router at all times in order to deliver high-quality per- formance. All devices in this range have working WWAN interfaces with access to 2G networks (GPRS/EDGE). -
Page 20: Sim Card Installation
3 Components and power supply Teldat S.A. (3) Maximum speed of 38400 bps. (4) Only the following signals are available: RxD (pin 2), TxD (pin 3) and GND (5). (5) DB-9 connector. 3.5.3.2 Asynchronous serial ports Some models are equipped with two additional serial ports. These serial ports can be RS-232 or RS-485/RS-422 and have the following characteristics: 3.5.3.2.1 RS-232... -
Page 21: Identifying The Sim Trays
3 Components and power supply Teldat S.A. Screws on the upper casing Fig. 14: 3.6.1 Identifying the SIM trays Once you have removed the upper casing, you will be able to see the different elements illustrated below. The Regesta PRO PLC incorporates two SIM cards, thus allowing for some special configurations. For example, by installing two SIM cards you can use one as backup. -
Page 22: How To Install The Sim Card
3 Components and power supply Teldat S.A. 3.6.2 How to install the SIM card In order to insert a SIM card in a tray, locate the SIM card case and follow the instructions given below: (1) Slide the SIM card case cover to the side to open it, as indicated by the ar- row labeled OPEN. -
Page 23: Compliance
4 Compliance Teldat S.A. Chapter 4 Compliance 4.1 Manufacturer information Teldat Brand Manufacturer Teldat S.A. Country Spain Postal Address Isacc Newton, 10 Parque Tecnológico de Madrid, 28760 Tres Cantos, Madid, Spain International Phone +34 91 807 65 65 Regesta PRO PLC... -
Page 24: Safety Warnings
4 Compliance Teldat S.A. 4.2 Safety warnings Connecting Connecting Regesta PRO PLC... -
Page 25: Weee Information
4 Compliance Teldat S.A. 4.3 WEEE Information The crossed-out wheelie bin symbol indicates that the device must be disposed of separately from normal domestic waste in an appropriate waste disposal facility at the end of its useful service life. Das auf dem Gerät befindliche Symbol mit dem durchgekreuzten Müllcontainer bedeutet, dass das Gerät am Ende der Nutzungsdauer bei den hierfür vorgese-... -
Page 26: Reach
4 Compliance Teldat S.A. 4.4 REACH In compliance with the REACH Candidate List, the delivered product and product packaging do not contain chemic- alsubstances above a concentration limit of 0.1% weight by weight (w/w). This declaration will be updated whenever- any changes occur or other chemical substances are added to the REACH Candidate List. -
Page 27: National Restrictions
In accordance with Article 6 (3) of 1999/5/EC, we inform you that national restrictions and requirements may apply when it comes to authorization. These may change over time. Teldat S.A. recommends that you check with local au- thorities for the latest status on national regulations. -
Page 28: Appendix A Technical Information
Technical information Teldat S.A. Appendix A Technical information A.1 Troubleshooting The following table lists common problems and potential solutions to help you when installing your router. Please contact your dealer for additional information if you are unable to solve a problem. -
Page 29: Connecting To The Router
Technical information Teldat S.A. the files. The Regesta PRO PLC incorporates independent modules for the WWAN interface. Depending on the technology used, you will be able to pick modules from different manufacturers or choose several modules from the same pro- vider. -
Page 30: Connectors
Technical information Teldat S.A. This initial configuration allows you to access the device's configuration console through the Telnet IP protocol. To do this, follow the instructions below: • Assign the IP terminal (normally a PC) Ethernet interface with an IP address in the [192.168.1.2, 192.168.1.254] range and with a mask of 255.255.255.0. -
Page 31: Configuration Connector
Technical information Teldat S.A. A.3.3 Configuration connector CONF A.3.4 RS-232 serial port connectors SERIAL A.3.5 RS-485 serial port connectors SERIAL 4H_RX+ 2H_R/TX+_4H_TX+ 4H_RX- 2H_R/TX-_4H_TX- A.4 Technical specifications Regesta PRO PLC... -
Page 32: Prime Plc Interface
Technical information Teldat S.A. A.4.1 PRIME PLC interface PROTOCOL PRIME 1.3.6 (Upgradeable PRIME 1.4). ROLE Configurable Base Node and Service Node. COMMUNICATIONS Single phase injection through CENELEC A band. TECHNOLOGY ATMEL ATPL230A chipset. Terminal Block 2 Poles 5mm pitch. CONNECTOR A.4.2 LAN interface... -
Page 33: Power Supply
Technical information Teldat S.A. A.4.7 Power supply NOMINAL 100-240 V AC. ABSOLUTE MAXIMUM 85-265 V AC. MAXIMUM POWER 15 W. Terminal Block 2 Poles 5 mm pitch. CONNECTOR A.4.8 Dimensions and weight TYPE Plastic ruggedized casing with DIN rail mount option. -
Page 34: Appendix B Radio Information
Radio information Teldat S.A. Appendix B Radio information B.1 RF GSM/WCDMA specifications The GSM/WCDMA equipment Regesta PRO PLC model provides WCDMA, GSM, GPRS, EDGE connectivity for networking over several radio frequency bands under 3GPP Standards. This product is supplied without antennas. Choosing antennas is at the discretion of the operator, but the operator is responsible for complying with local regulations.
