Note: Some LEDs may behave differently depending on how the device is configured.

2.4.2 Connector Panel

The connector panel is covered by a protective case. You have to remove this case to access the the connector pan-
el. For further information on how to remove/install the protective cover, please, see
nector Protector

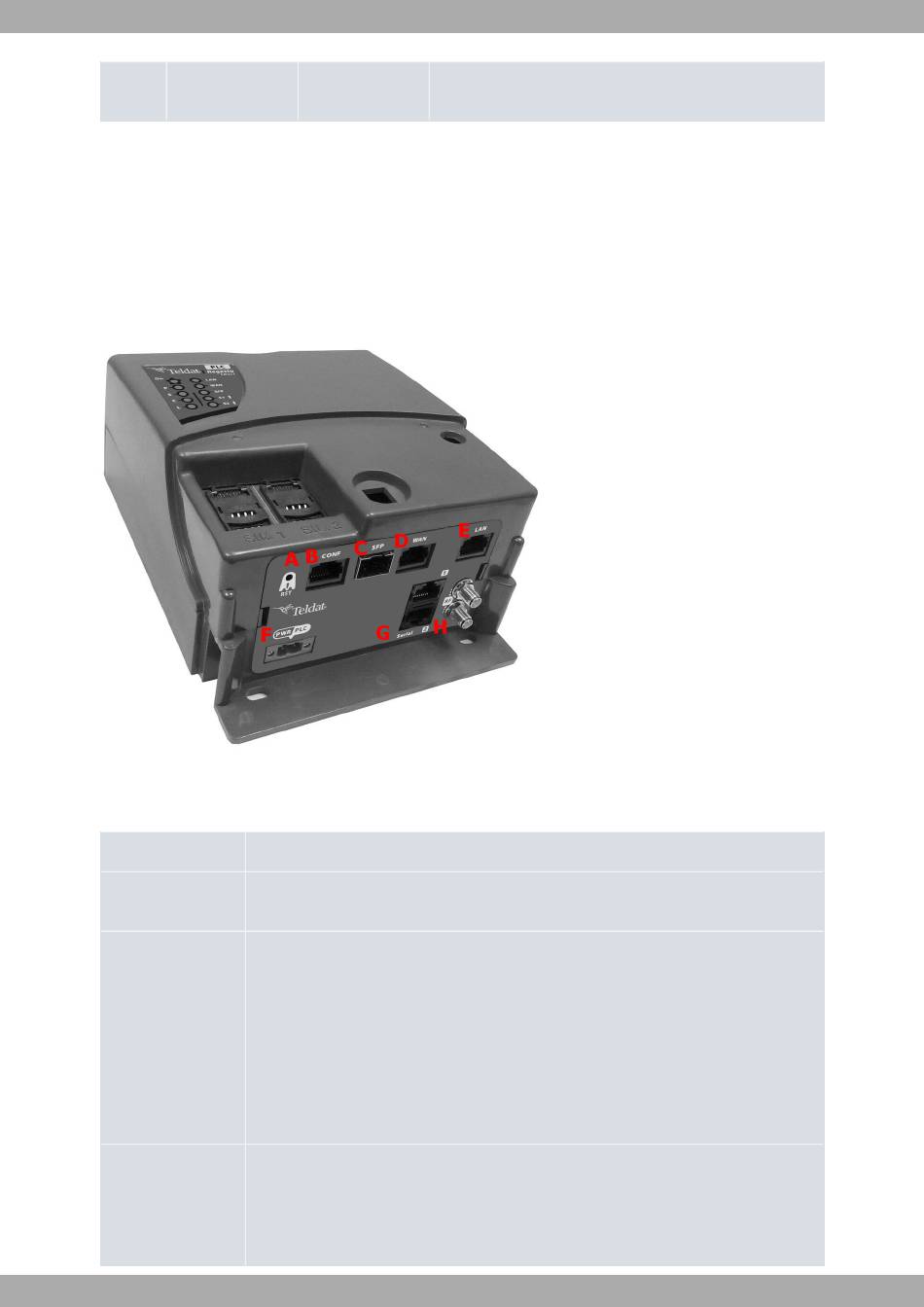

The following figure shows the connector panel. This panel includes all the connectors on the Regesta Smart PLC
router.
Connector Panel
Fig. 4:
The connector panel elements are as follows:
Table 1: Front Panel Elements
Item
A
B
C
Regesta Smart PLC
on page 12.
Description
RST. Reset button. For further information on how the reset button works, please see
Button
on page 25.
CONF. RJ-45 connector providing access to the device's local console for configuration and
monitoring purposes. (This connector can also be used as an RS-232 asynchronous DCE
serial port.)
For more information about the CONF connector, refer to:
-
Console Connector as Serial Port (CONF connector)
-
Configuration Connector
-
Configuration Interface
WAN Gigabit Ethernet. SFP connector.
For more information about the WAN interface with SFP connector, refer to:
-
WAN connections
on page 19
• Steady: Data is not being transferred.
• Flashing: Data is being transferred.
on page 33
on page 36
Removing/Installing the Con-
on page 22
