4.6.1 Connecting to the router

There are two ways of accessing the device CLI:
4.6.1.1 Connecting through the local console (CONF connector)
The Regesta Smart PLC has a RJ.45 female connector on the front panel known as CONF., which provides access
to the device local console. To configure this, connect the CONF. port to an asynchronous terminal (or to a PC with
terminal emulation).
To connect to the configuration port, use the RJ45 cable (provided with the router) and the female RJ45-female DB9
adapter (also provided with the router). If the terminal has DB25 connectors, an additional adapter will be needed.

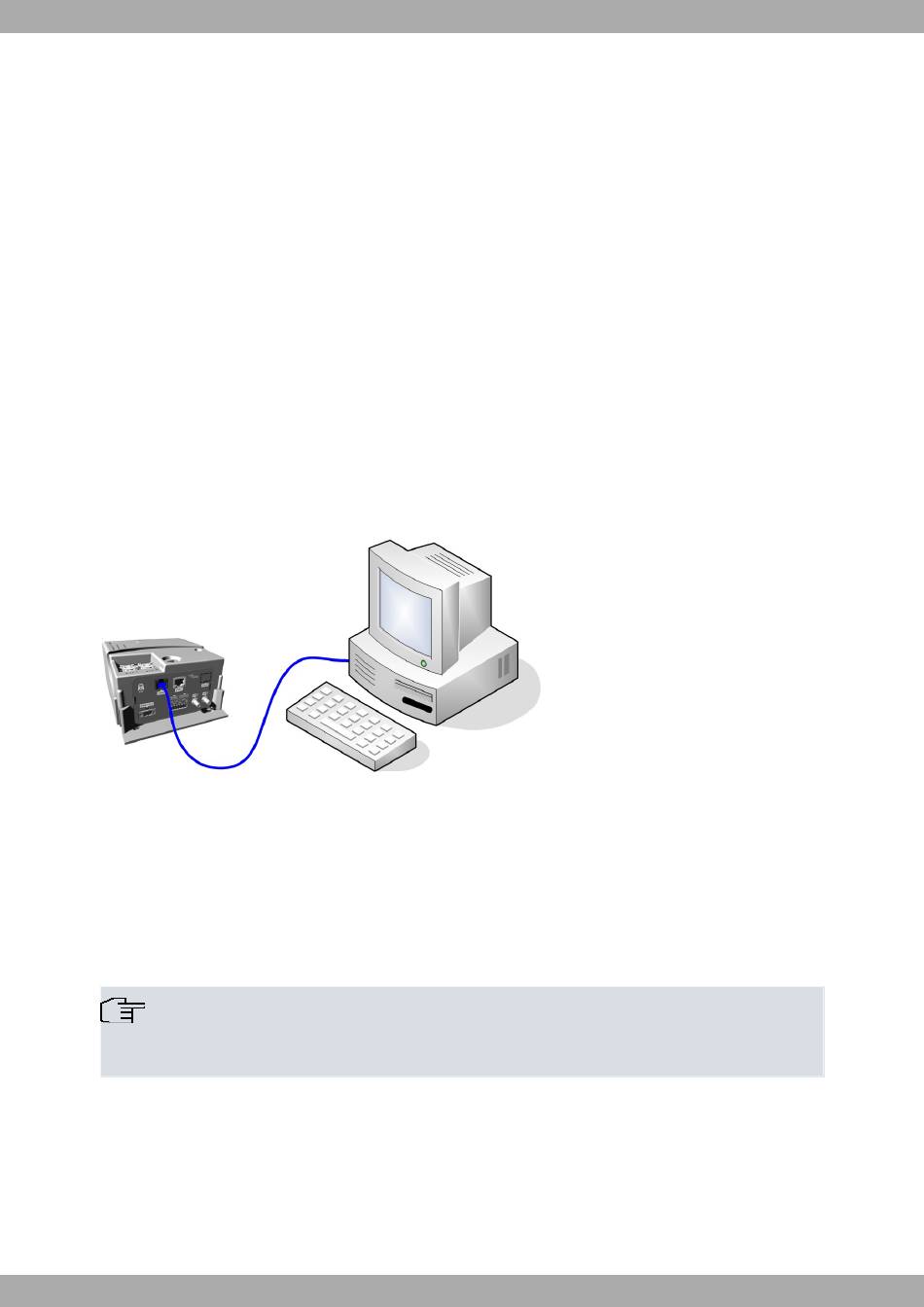

Connecting for configuration
Fig. 24:
4.6.1.2 Connecting through an IP terminal (LAN connector)
The Regesta Smart PLC includes a default configuration that activates if you haven't preconfigured anything.
The router's default configuration establishes the following IP address and access mask:
Note
Some devices leave the factory with customized settings. This personalization can mean that the de-
fault configuration is different from the one shown above.
This initial configuration allows you to access the device configuration console through the Telnet IP protocol. To do
this, carry out the following steps:
Regesta Smart PLC
• Through the CONF connector.
• Through the Telnet protocol.
• Speed: 115200 bps.
• Eight data bits.
• One stop bit.
• No parity bit.
• No type of flow control.
• IP address: 192.168.1.1
• IP mask: 255.255.255.0
• Configure the IP terminal (normally a PC) Ethernet interface with an IP ad-
dress within the range [192.168.1.2, 192.168.1.254] and with mask
255.255.255.0. E.g. 192.168.1.2, 255.255.255.0.
• Connect the IP terminal Ethernet interface to the Regesta Smart PLC LAN
connector through the Ethernet cable (RJ45) provided.
