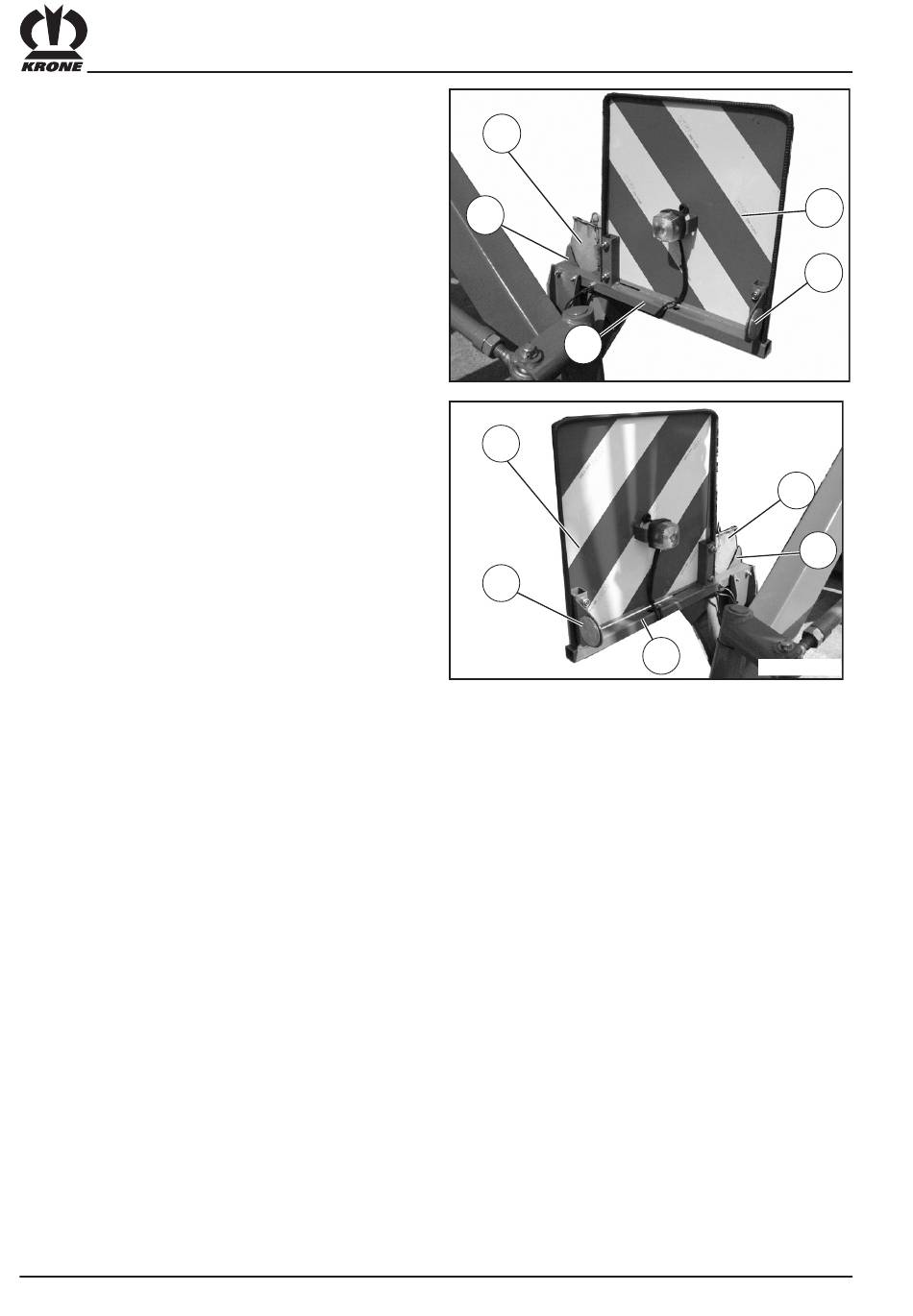

A1.11 Attaching the warning signs
• Install the warning panel support (1) on the drive
frame.
• Install the forward cotter support (2) on the
warning panel support (1) and insert the wheel
chock (3) in the retainer (2).
• Assemble the warning panel (4) on the warning
panel support (1)
• Assemble the side lobes (5) on the warning
panel support (1)
• Connect the lighting and check to make certain
it is functioning properly.
A - 6
3
2
1
4
5
4
5
SW101038
3
2
1
SW101039
