Basic setting

The basic setting should be undertaken on even
surfaces.
Keep a safe distance from the swather
disk when it's turning! Before switching
on the PTO shaft, ensure that no-one
could be caught by the swather disk.
When the PTO shaft is running, the
swather arms may only be raised to
just before their stops.

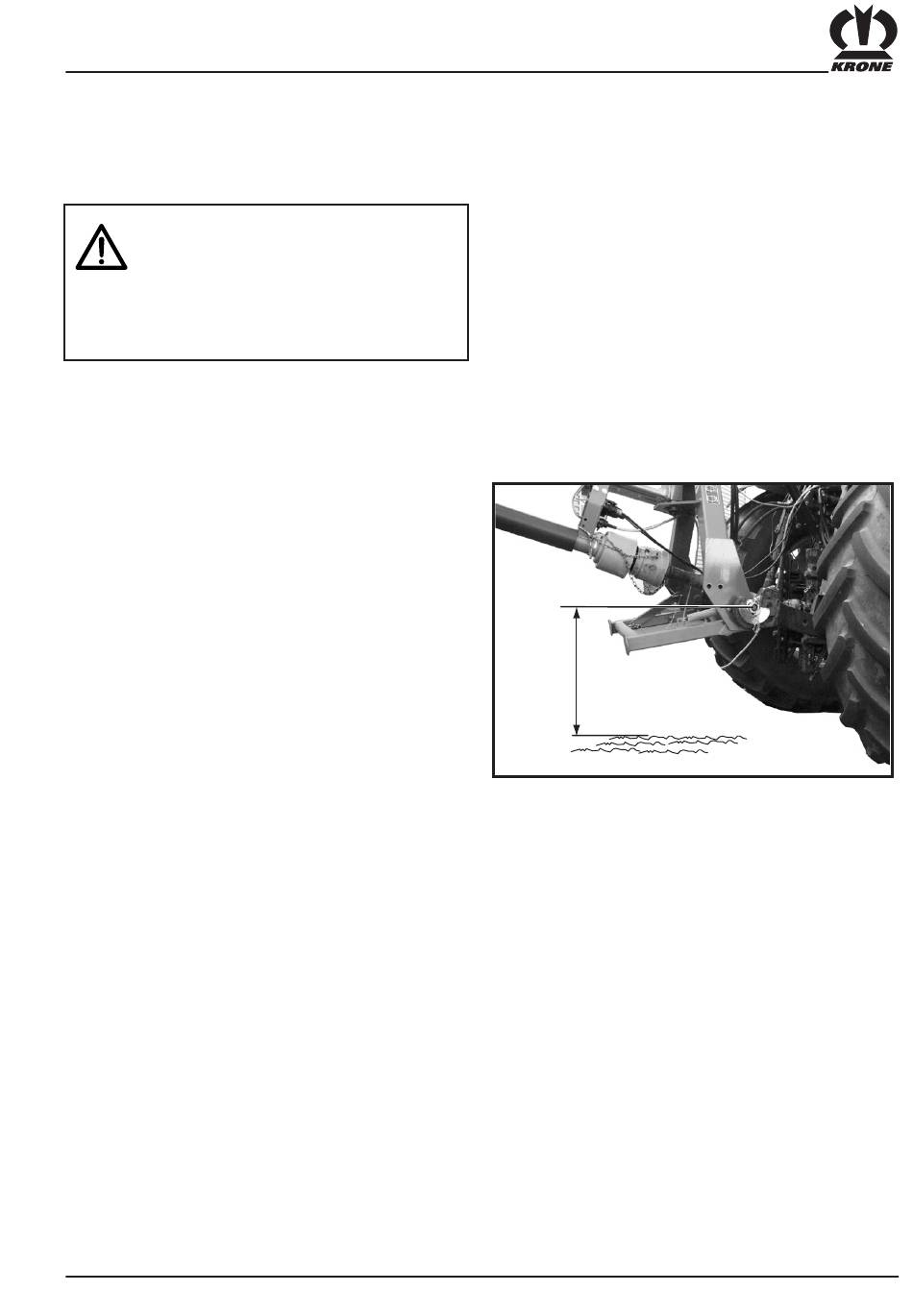

5.1 Height of the tractor lower link
arms
The height of the tractor lower link arms should be set so
that the lower link arm pins are
H approx. 80 cm
above the ground.
Fix the lower link arms at this height.
(see also Point 8.2)
Basic setting
H
SW101025
