3.4 Driving and Transport

3.4.1 General on Driving

The following should be observed when the rotary
swather is driven:
• Due to the rear wheel steering the handling of the
rotary swather requires a certain time to get used to.
• The rotary swather swivels out. Please
observe when driving around curves.
• The rotors must not be driven in the
transport position.
3.5 Transport of the swather on
public roads

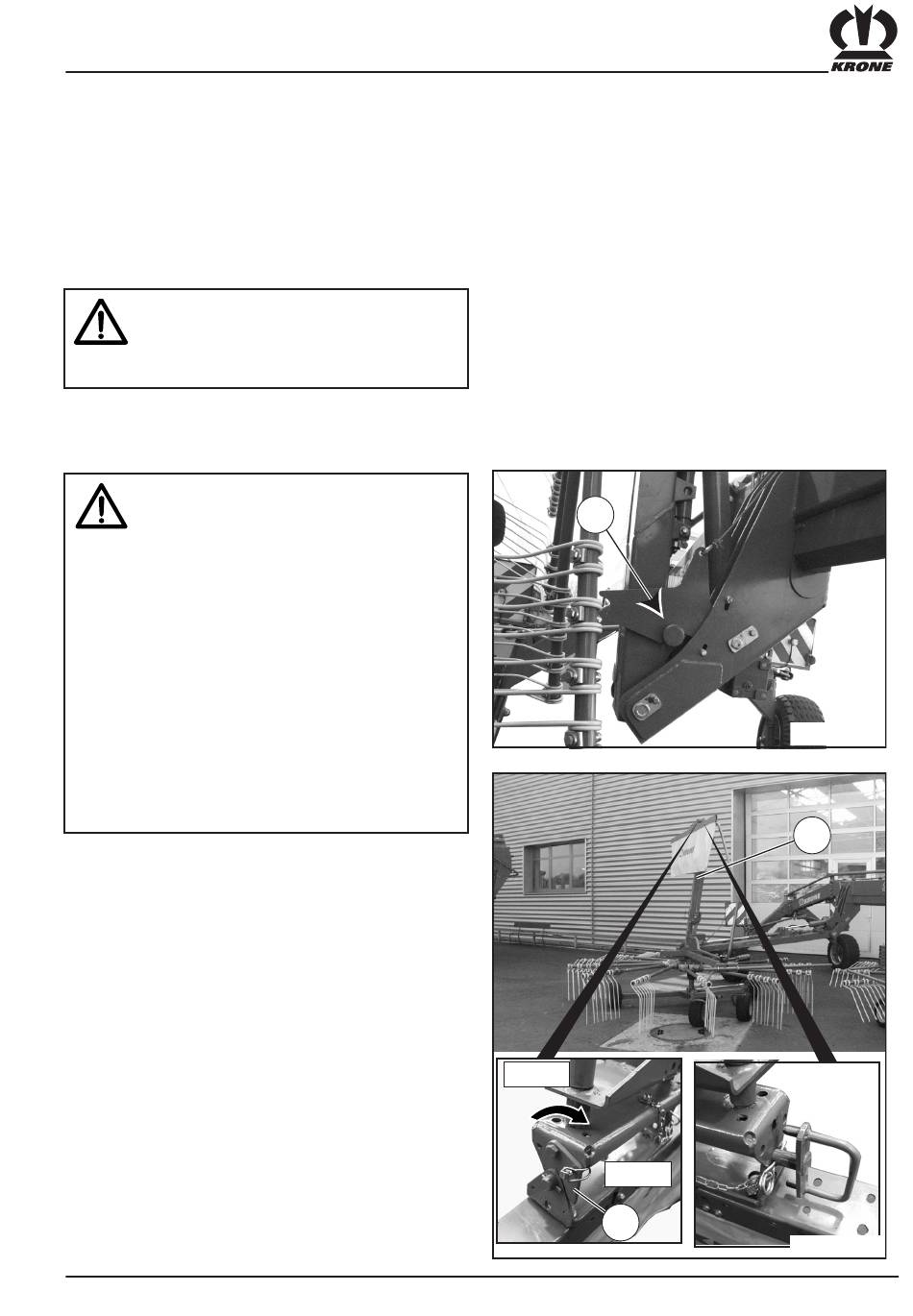

• Before transporting the swather on
public roads, check that the left and
right locks (1) have snapped correctly
into the retaining pins.
• When using public roads and paths,
the appropriate illumination
regulations should be observed.
• Plug tine guard onto tines and
secure.
• Before driving on public roads or
paths, it is mandatory for the rotary
arms to be folded into transport
position.
• Before switching from the working to
the transport position, make certain
the swath cloth (1) is suspended and
swinging freely and the safety flap (2)
is in position (I).
• Fold the three tine arms (right and left) into transport
position (see section 4.4.2).
• Plug tine guard onto the tines, which are located
below 2 m in transport position (see section 4.4.4)
• Lock the rotors (see section 4.4.2)
• Fold up guard bar (see section 4.4.1).
• Check lighting system.
• Lift swath arms until the left and right locks (1) have
snapped correctly into the retaining pins (see section
4.4.3).
• Close the shut-off valves
Preparing for Operation
1
Pos.II
Pos.I
2
SW101009
1
SW101051
III - 7
