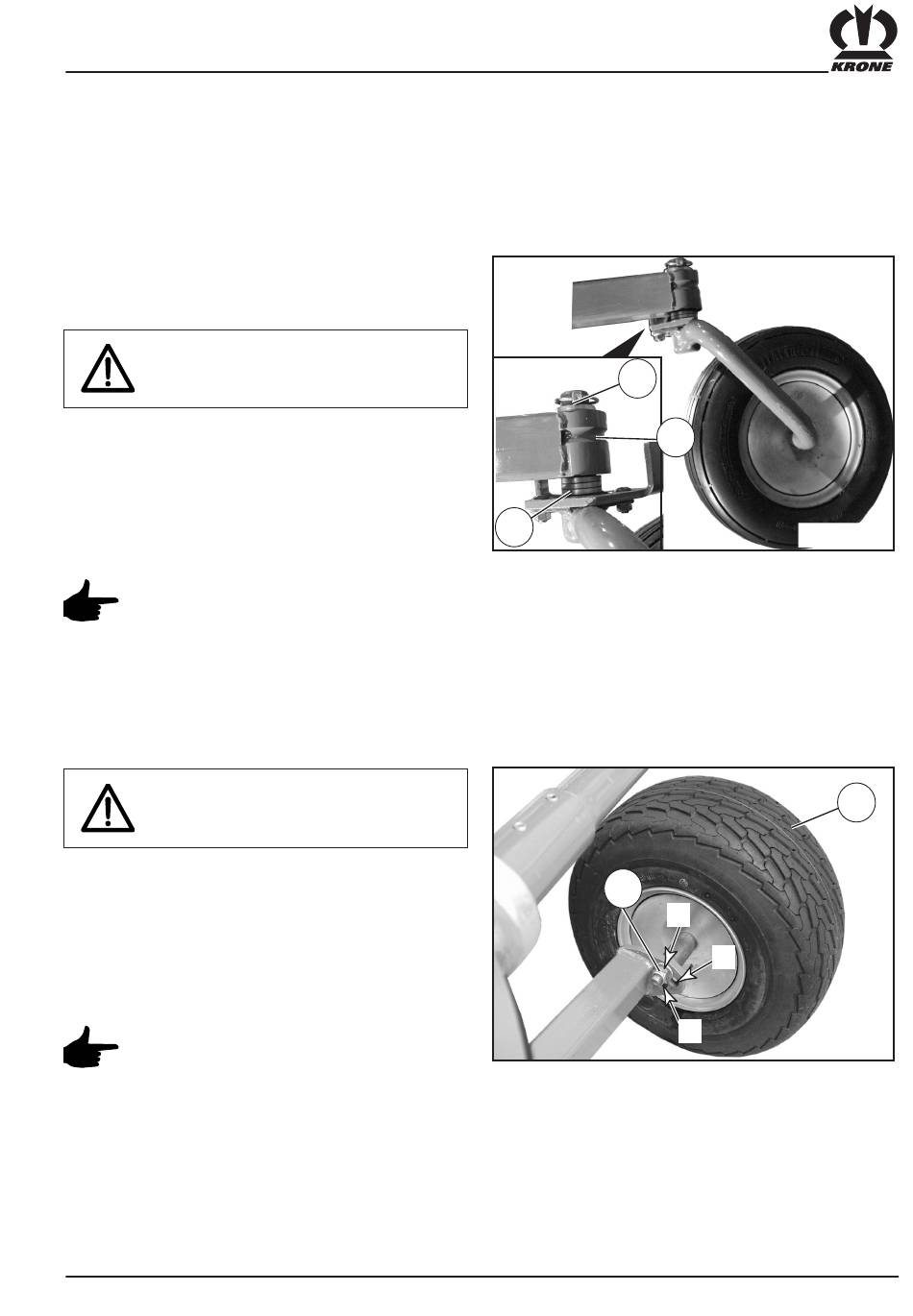

5.3 Setting the lateral inclination of
the swather disk chassis
To achieve optimal work results, the transverse
inclination of the rotors can be changed on the rear
guide wheels (left + right) of the running gears.
5.3.1 Setting of the rotor running gear on
the front rotor
Do not step under the lifted rotors.
•
To do this, lift the rotor arms only as far as
necessary to carry out the adjustment work.
•
Remove the rear guide wheels and mount the existing
U washers (1) either under or over the running wheel
bearing (2).
With heavy feed - set the chassis internally
as low as possible!
5.3.2 Setting of the rotor running gear on
the centre and rear right rotors
Do not step under the lifted rotors.
•
To do this, lift the rotor arms only as far as
necessary to carry out the adjustment work.
•
Demount the rear trailing wheels and remount them in
the desired position.
With heavy feed - set the chassis internally
as low as possible!
Basic setting
1
2
1
2
I
SW101043
1
II
III
SW700016
V - 3
