A1.5 Assembly of the tine arms on
the front and rear rotor
When mounting the tine arms, always
make certain that the folding tine arms are
installed one after the other.
Front rotor:
3 folding tine arms (4 tines)
Centre rotor:
6 rigid tine arms (4 tines)
Rear rotor:
3 folding tine arms (5 tines),
1 rigid tine arm (5 tines)
•

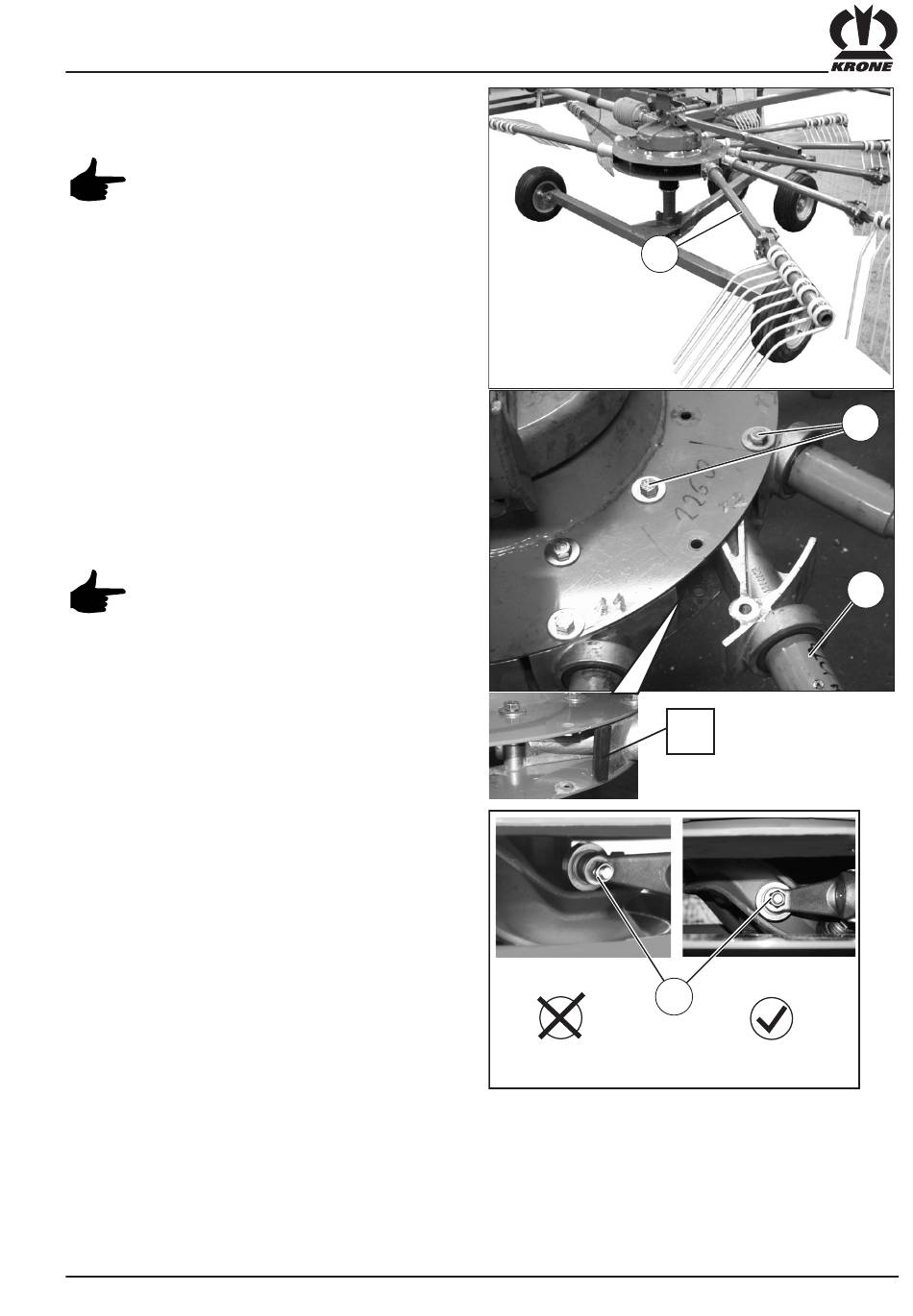

Loosen the bolts (1) on the nearby tine arms (2).
•
Guide the tine arm (3) in between the upper and lower
rotor disc and clamp the clamping profile (4) between
the two tine arms.
•
While installing the tine arm, make certain that the
control roller (5) is inserted into the running track of
the cam track.
•
Tighten all bolts to the required torque.
After the tine arms have been assembled,
turn the rotor around once manually to
ensure it is moving easily and without
any obstruction.
Appendix
2
SW101036
4
5
SW101037
1
3
A - 3
