5.2 Setting the Operating Width

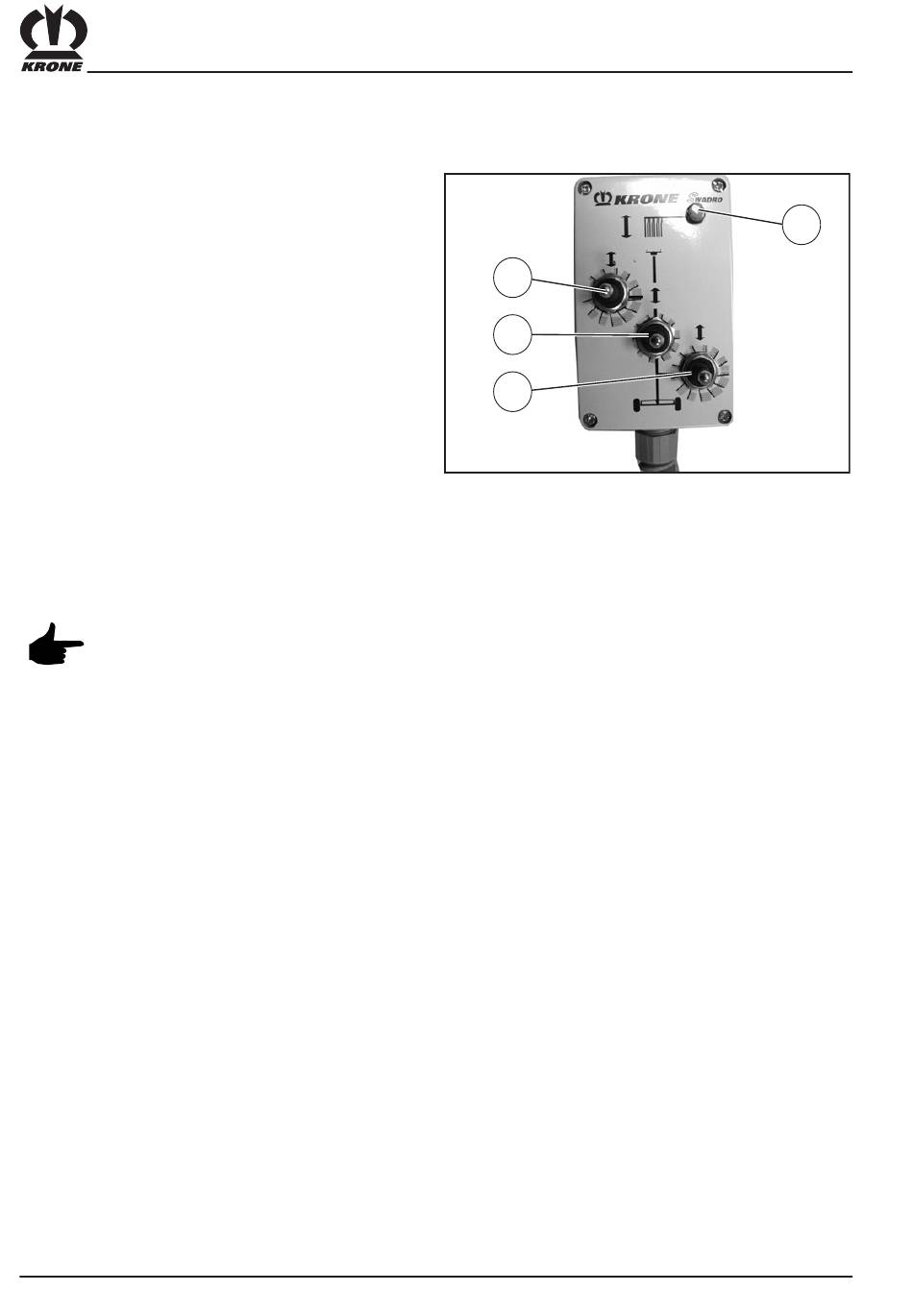

The working depth for the swather disks is adjusted via
three drive motors.
Switch 2 = swather disk front left-hand
Switch 3 = swather disk middle
Switch 4 = swather disk back right hand
Pressing the switch > upwards = moves swather disk
Pressing the switch > downwards = lowers swather disk
The working depth should be set during use.
Note the following:
When the setting is too high the feed will not be
completely harvested.
When the setting is too low there is a risk that the feed
will be soiled, the greensward may be damaged and
increased wear of the twin-spring tines.
Once depth adjustment is complete, switch off operation
device!
Do not operate both switches
simultaneously, as otherwise the fuse
in the switchbox could blow!
V - 2
upwards
2
3
4
1
SW101008
