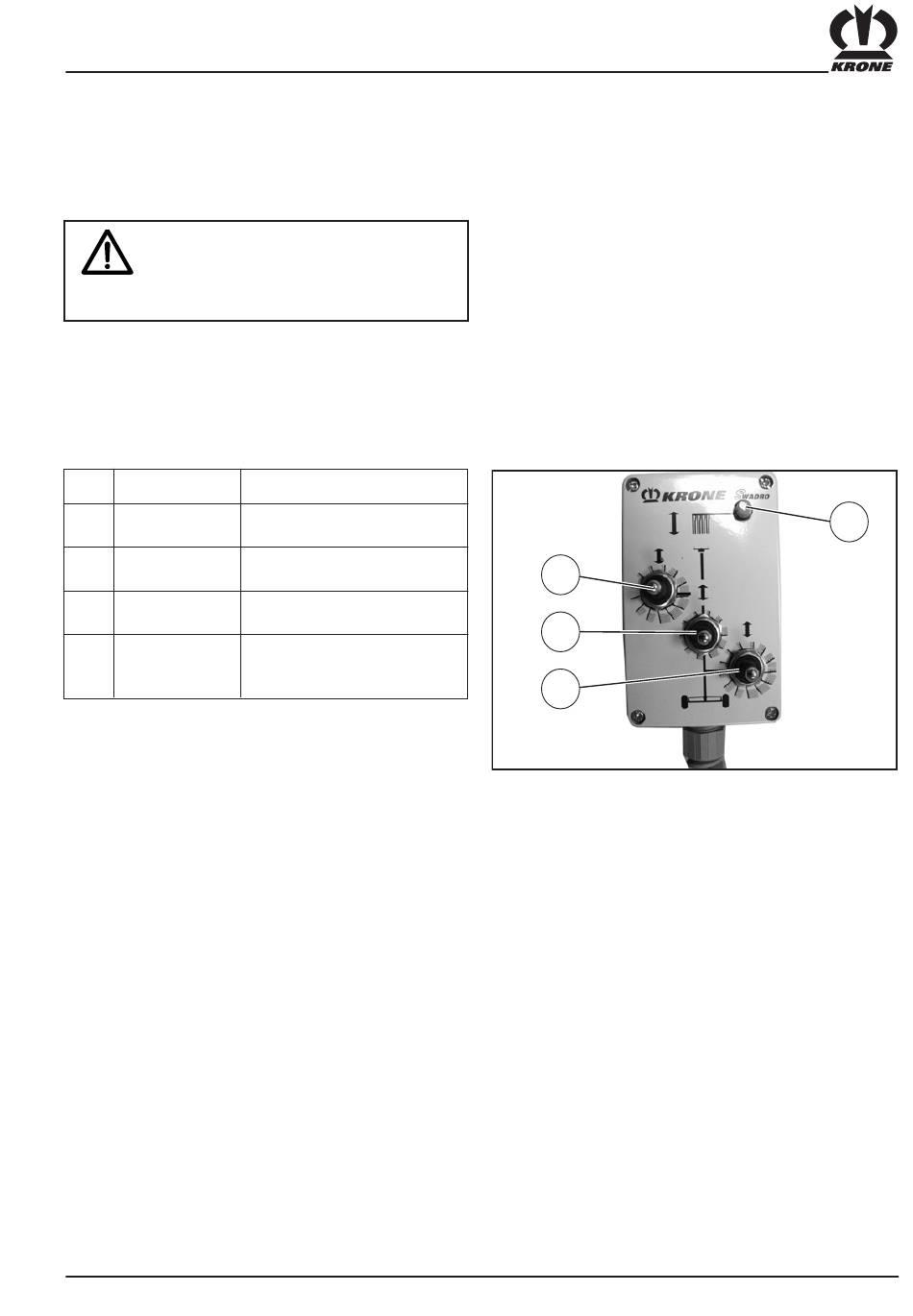

3.3.5 Function of the switches on the
control unit
Always activate one function only on
the control unit.
The switches of all other functionss
must be set to neutral.
The following table shows the function of the different
switches.
Item Designation
1
Indicator light
(green)
2
Rocker switch
(touch-sensitive) Front left rotor
3
Rocker switch
(touch-sensitive) Centre rotor
4
Rocker switch
(touch-sensitive) Rear right rotor
Function
Lit when the
rocker switch is activated
Adjusting the working depth
Adjusting the working depth
Adjusting the working depth
Preparing for Operation
2
3
4
1
SW101008
III - 5
