Appendix

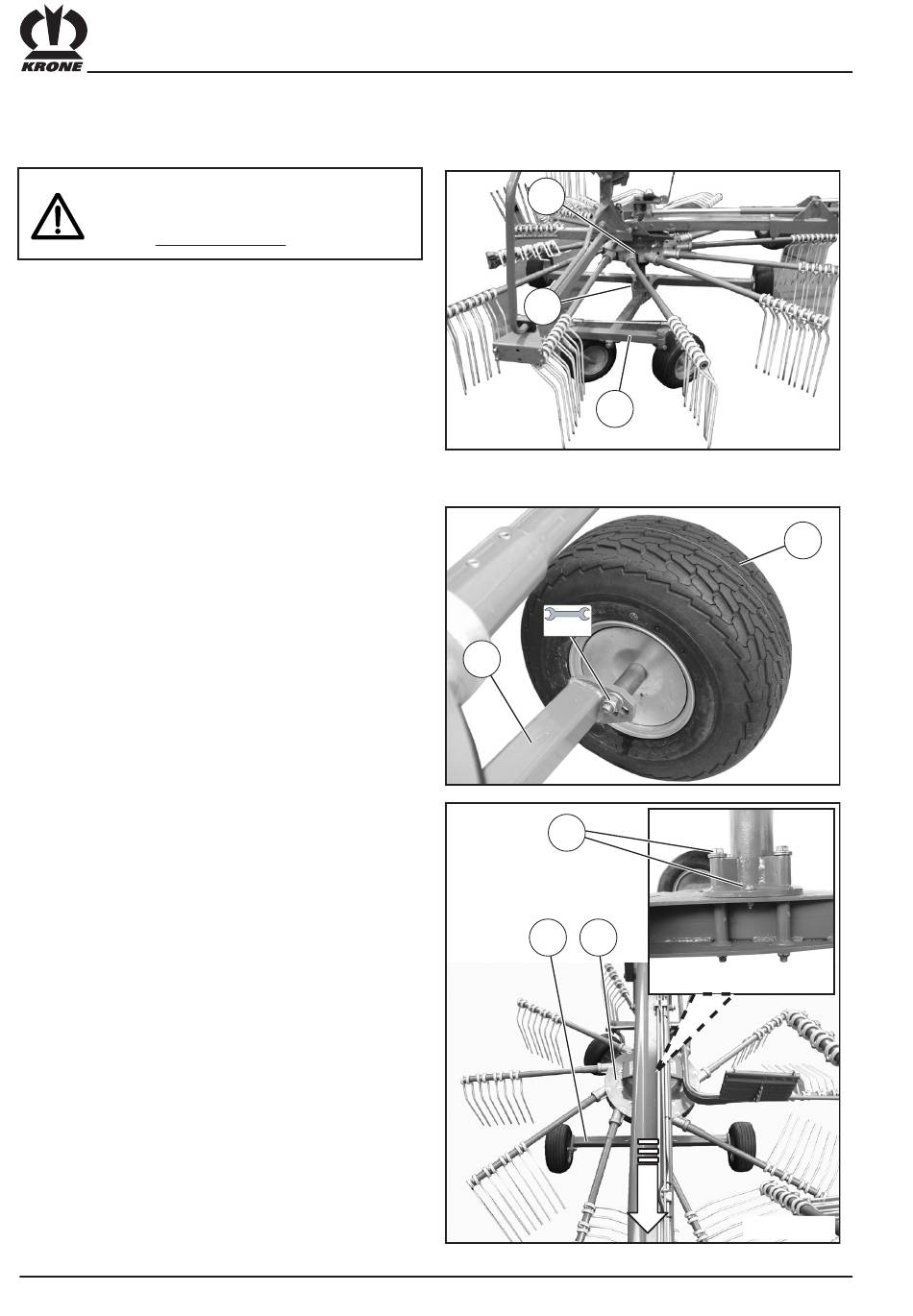

A1.3 Rotating the front and back
rotor running gears
The front and rear rotor running gears
must be switched while the machine
is in working position.
•
Move the machine to the working position.
•
Remove the rotor running gear (1) by loosening the
screw points (2) from the rotor (3).
•
Raise the rotor arms until the rotor running gear (1)
can be turned.
•
Turn the rotor running gear (1) as shown in the
illustration
•
Mount the rotor running gear with the rotor on the
screw points (2).
•
Mount the tyres (4) on the rear rotor running gear (1).
A1.4 Assembly of the centre rotor
running gear
•
Push the rotor running gear (1) under the centre rotor
(2) as shown in the illustration.
•
Slowly lower the centre rotor (2).
•
Mount the rotor running gear with the rotor on the
screw points (3).
A - 2
3
2
1
Nm
1
3
1
2
SW101045
4
SW101049
SW101053
