Appendix

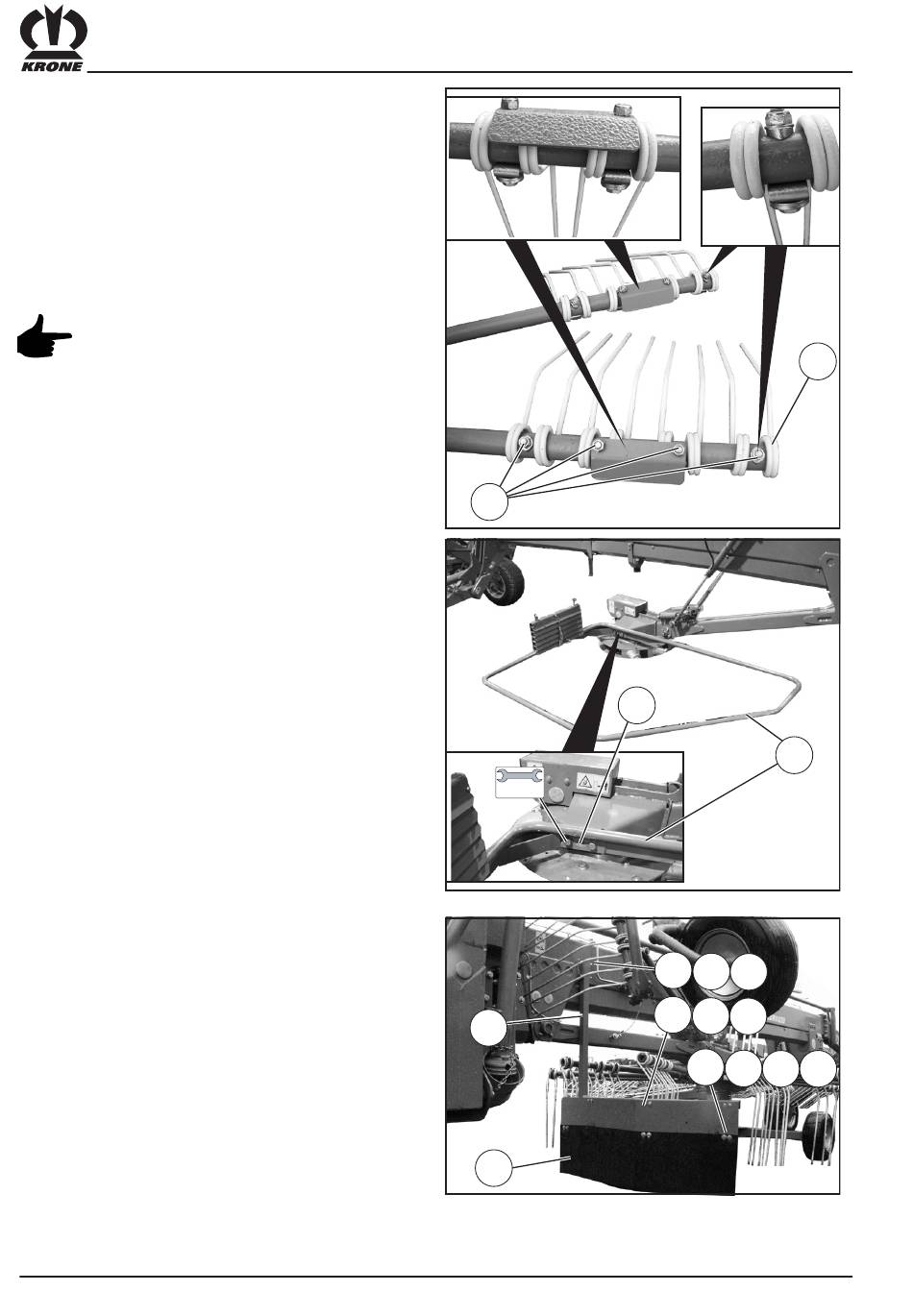

A1.6 Montage der Zinkenarme am
mittleren Kreisel
• Verschraubungen (1) am Zinkenarm lösen
• Die vier Zinken (2) nach außen schieben und
wie in nebenstehender Abb. dargestellt montie-
ren.
When tightening the screw connections
(1), press the tines (2) slightly upward so
they are resting on the fastening clamp
(3).
A1.7 Mounting the hoop guard on
the centre rotor
• Mount the hoop guard (1) on screw point (A) of the
centre rotor.
A1.8 Mounting the front bulge
bags
(1) 1x Bulge bag support
(2) 2x Hex screws M 10 x 70
(3) 10x Detent edged washer SKM 10
(4) 8x Locknut M 10
(5) 1x baffle plate
(6) 1x rubber cover
(7) 6x Hex screws M 6 x 60
(8) 12x Washer 6.4 X 18 X 1.6
(9) 6x Locknut M 6
(10) 6x coach bolts M 10 x 30
(11) 6x washers R11 / 34x3
• Fasten the bulge bag support (1) on the frame of the
machine.
• Screw the baffle plate (5) onto the bulge bag support
(1).
• Screw the rubber cover (6) onto the baffle plate (5)
A - 4
1
A
Nm
1
5
2
SW101052
1
SW101050
2
3 4
7
8 9
10
11 3 4
SW101047
