3.3.2 Hydraulic connection Swadro 1010

• When connecting the hydraulic hoses to the tractor hydraulics relieve all pressures from the
system at either side.
• When connecting the rapid action couplings, make sure that they are clean and dry. Soiling will
result in leaks and damage.

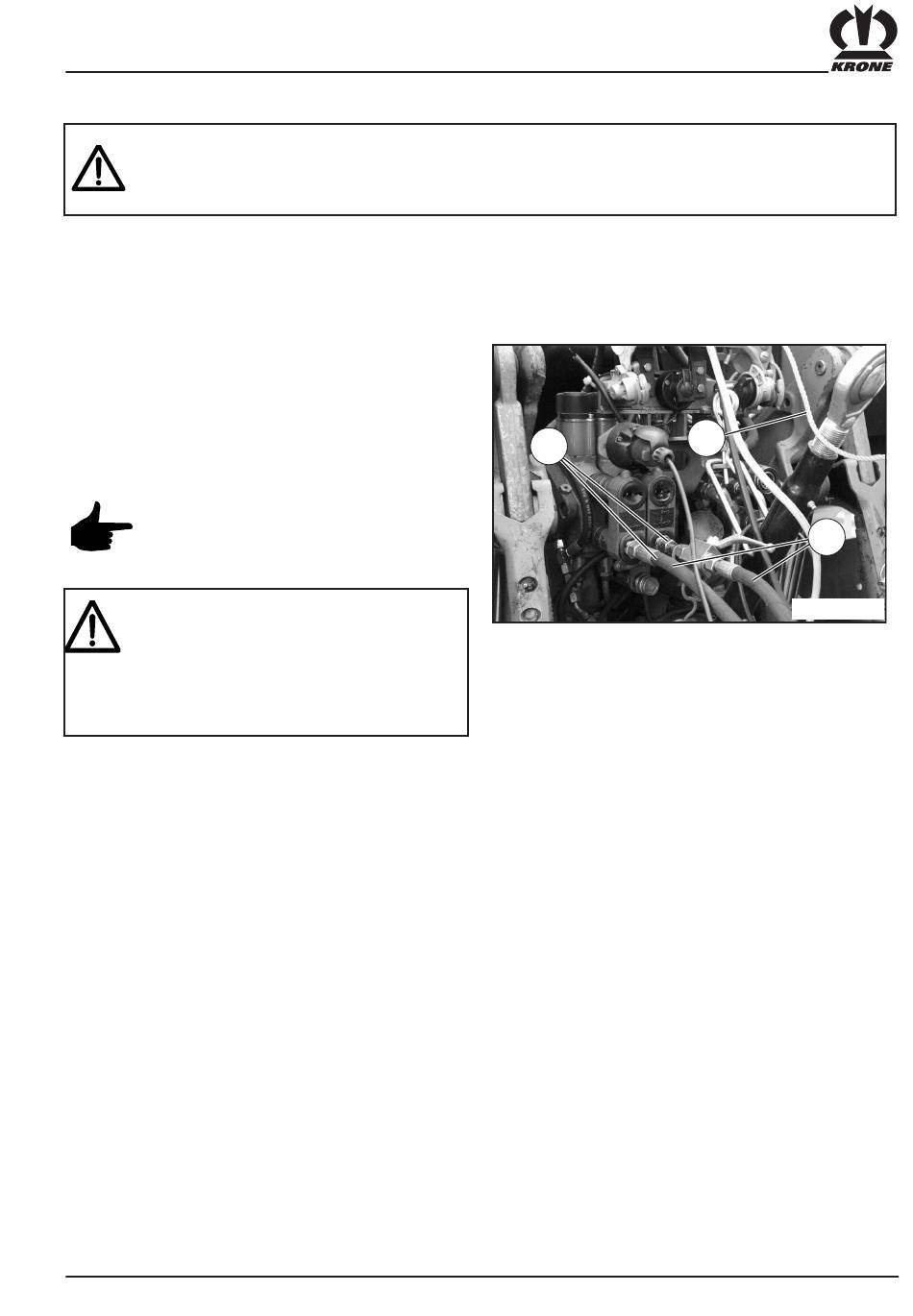

For the operation of the rotary swather, the tractor must
be fitted with two single acting control valves
• The hydraulic hoses (1) are coupled into the coupling
sleeve (2) of the control valve.
• The operating rope (2) should be fixed at a
convenient point on the tractor.
When coupling the hydraulic hose be
sure that the hydraulic control unit is set
to floating or lowering position.
• The control cable must be so
positioned that it can not cause any
accidental movements in any transport
or working positions
• The control cable does not come into
contact with the tractor tyres.
Preparing for Operation
3
2
1
SW101005
