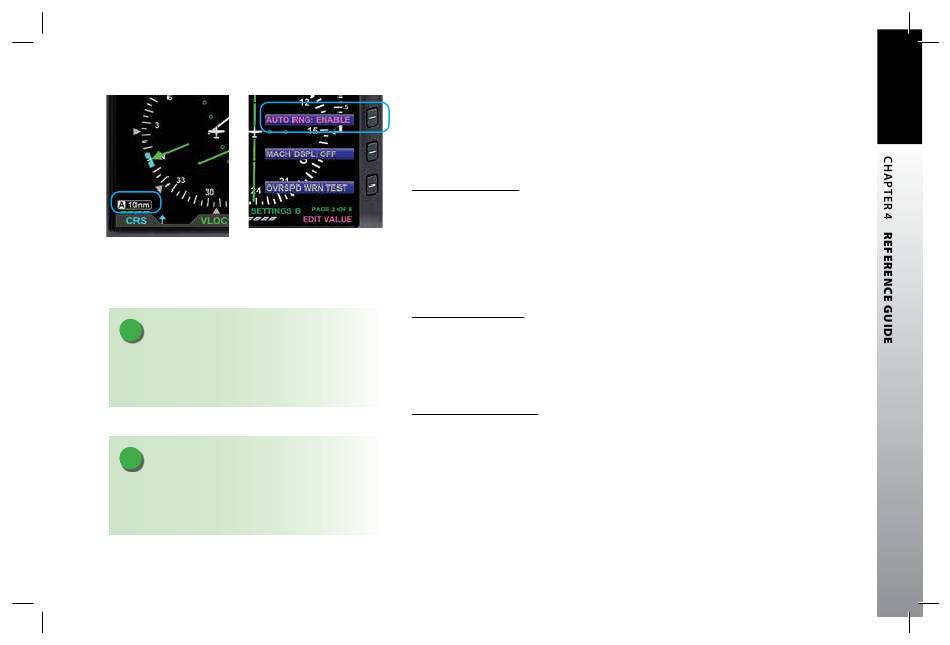

Figure 4-95
Auto Range Mode
NOTE
The map range increases or decreases one increment
each time the RNG + or - Button is pressed. Press and
hold to continuously increase or decrease the range.
NOTE
The Basemap declutter setting can determine what is
displayed for a particular range. Refer to Chapter 5,
Table 5-9 for more information.
091-00027-001 REV A
091-00027-001 Rev A EBD Pilots Guide V&H .indb 29
The EBD has an Auto Range feature that automatically scales the range (to the closest
range setting) to fit the Aircraft Ownship and the active waypoint within the Navigation
Display, e.g., if the active waypoint is 84 miles away, Auto Range will select a 100nm
range (the closest range setting is 100nm). When Auto Range is active, an inverse white
A is shown next to the range value (Figure 4-95).
Enable Auto Range
Figure 4-96
GENERAL SETTINGS B Page Editing Auto
The AUTO RNG label turns magenta (Figure 4-96).
Range Setting
Activate Auto Range
The map range changes and the new map range is indicated on the map. An inverse
white A displays next to the numeric range value.
Deactivate Auto Range
The inverse white A next to the numeric range value is removed.
Pressing RNG + moves to the next higher range; pressing RNG - moves to the next
lower range.
Evolution Backup Display Pilot's Guide
1. Press the MENU Button.
2. Rotate the Right Knob to the GENERAL SETTINGS B Menu page.
3. Press the AUTO RNG Menu Key.
4. Rotate the Right Knob to the desired value, either ENABLE or DISABLE.
5. Press the MENU Button to exit.
1. Press the RNG +/- button to select the highest or lowest map range.
2. Release and then press and hold the RNG +/- button for two seconds.
1. Press the RNG +/- Button once to deactivate Auto Range mode.
Page 4-29
