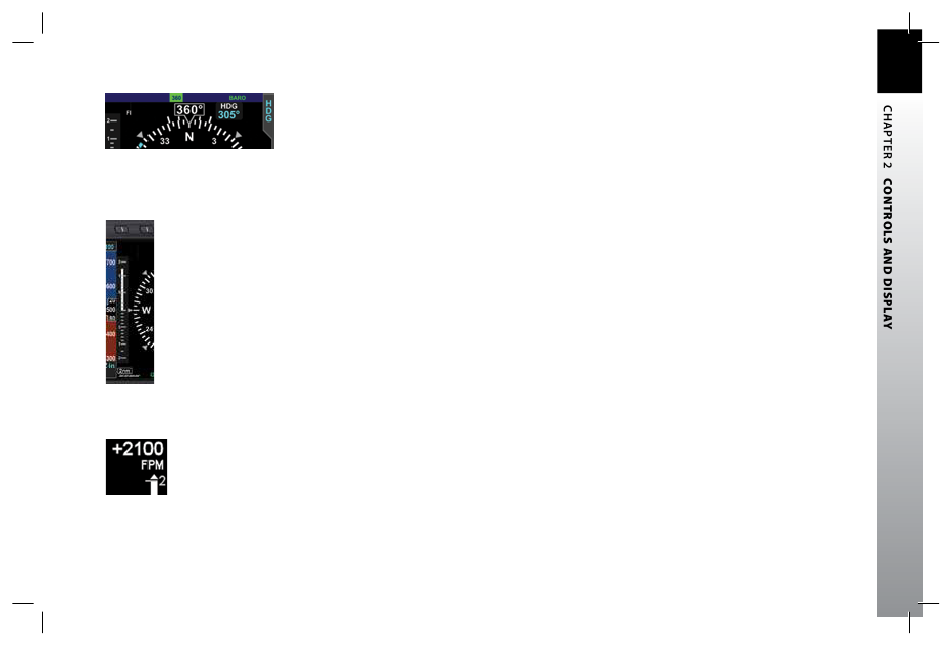

Figure 2-26
Rate of Turn Indicator, Rate Shown >6º/second
Figure 2-27
VSI Tape
Figure 2-28
VSI Tape Capped, Digital Value
Showing 2,100 FPM Climb
091-00027-001 REV A
091-00027-001 Rev A EBD Pilots Guide V&H .indb 27

2.3.4.2. Rate of Turn Indicator

A Rate of Turn Indicator (Figure 2-2, No. 48) with a range of 0 to 6 degrees per second
is provided for both the 360 and ARC Compass Modes. The indicator consists of a
curved white tape that extends from the Numerical Heading Indicator's lubber line and
in the direction of the turn, along the outer curve of the compass card.
The Rate of Turn Indicator features an outer thick white tick mark for a Standard Rate
turn, and an inner thin white tick mark for Half-Standard Rate turns. A Standard Rate,
two-minute turn equals 3 degrees per second. When the rate of turn exceeds 6 degrees
per second, an arrowhead is added to the end of the tape to show that the rate of turn
has exceeded the limits of the indicator (Figure 2-26).

2.3.4.3. Vertical Speed Indicator (VSI)

A Vertical Speed Indicator (VSI) is shown as a tape on the Navigation Display (Figure
2-27 and Figure 2-2, No. 57) to the right of the HSI in 360 Compass mode. A numerical
vertical rate is shown in the upper right-hand corner of the Navigation Display during
climbs and descents (Figure 2-2, No. 56). The VSI tape is not shown in ARC Compass
mode, but the numerical value display is shown in both 360 and ARC Compass modes.
Whenever the vertical speed exceeds +/- 100 feet per minute (fpm), the vertical
speed is indicated by a rising/sinking white vertical tape and associated scale markers
immediately to the right of the compass rose (Figure 2-2, No. 57 and Figure 2-26).
A numerical value of the aircraft's vertical speed is shown directly above the tape, in
the upper right-hand corner of the Navigation Display (Figure 2-2, No. 56). Rates of
up to ±2,000 fpm are indicated by the tape, while the numerical value will display rates
of up to ±9,990 fpm. A white triangle caps the tape whenever rates exceed ±2,000 fpm
(Figure 2-28). The Vertical Speed Numerical Value will be dashed whenever the vertical
speed exceeds +/- 10,000 fpm. In the ARC Compass Mode, only the Vertical Speed
Numerical Value is presented.
