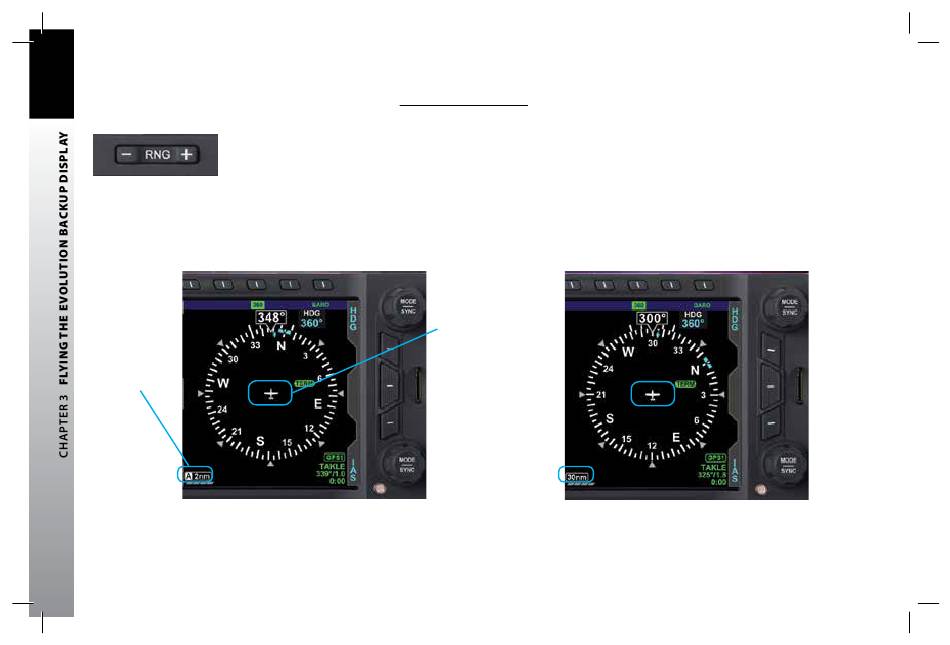

Aspen Avionics Evolution Backup Display EFD1000 Pilot's Manual page 66

Figure 3-14
Range Button
Current Range
Figure 3-15
Current Range 2nm from Ownship to Edge of Compass Rose
Page 3-12
091-00027-001 Rev A EBD Pilots Guide V&H .indb 12
Change the Map Range
Press the RNG (Range) Buttons (Figure 3-14) UP (+) to increase the range,
•
or DOWN (-) to decrease the range, until the desired range is shown
(Figures 3-15 and 3-16).
Ownship
Symbol
Figure 3-16
Current Range 30nm from Ownship to Edge of Compass Rose
Evolution Backup Display Pilot's Guide 091-00027-001 REV A
