1.1.4. Remote Sensor Module (RSM)

The Remote Sensor Module (RSM) (Figure 1-5), is an integral part of the EBD system
and works together with the display unit sensors as part of the AHRS and ADC. The RSM
looks and mounts like a GPS antenna and is mounted on the exterior of the fuselage,
typically aft of the cabin.
The RSM contains the following sub-systems:
• 3D magnetic flux (heading) sensors
• Outside Air Temperature (OAT) sensor
• Emergency backup GPS engine and antenna
The RSM communicates with the EBD via a digital cable connection.
091-00027-001 REV A
091-00027-001 Rev A EBD Pilots Guide V&H .indb 5
Evolution Backup Display Pilot's Guide

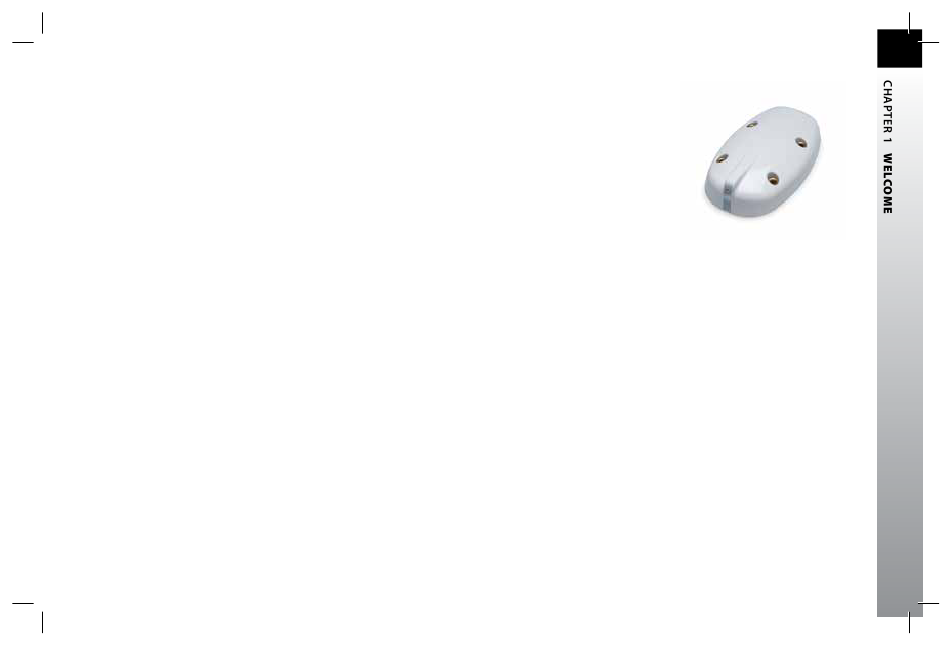

Figure 1-5
Remote Sensor Module (RSM)
Page 1-5
