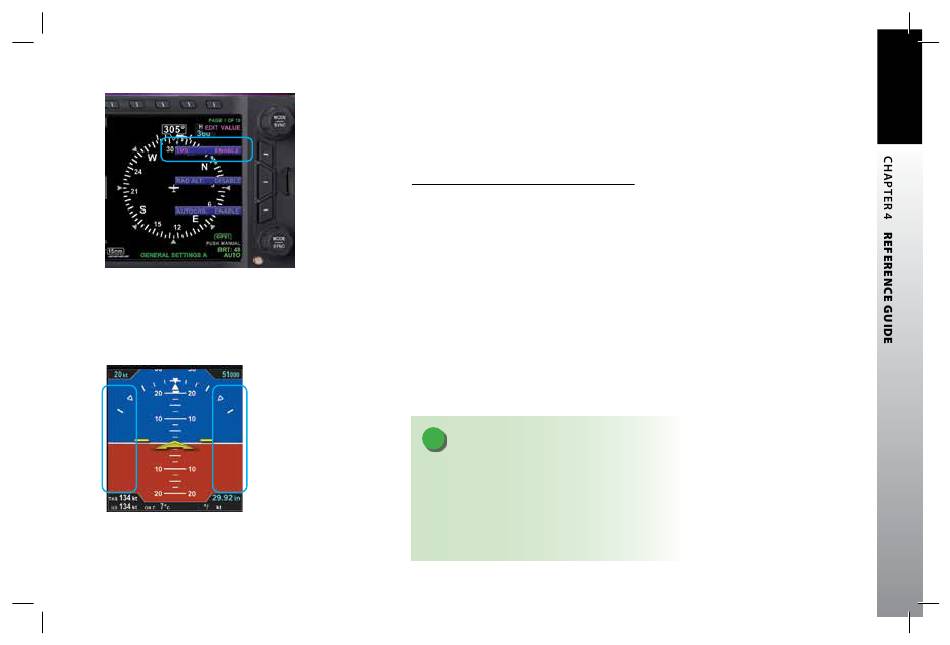

Figure 4-34
Editing Airspeed and Altitude Tape Display
Figure 4-35
Airspeed and Altitude Tape Disabled
091-00027-001 REV A
091-00027-001 Rev A EBD Pilots Guide V&H .indb 17

4.2.3.3. Altitude Display

In some configurations, such as a stand-alone EBD, the altitude tape can be turned off,
at the pilot's discretion, to facilitate screen declutter. Both Airspeed and Altitude tapes
are affected by this action.
Hide/Display Airspeed and Altitude Tape
1. Press the MENU Button.
2. Rotate the Top Knob counterclockwise until GENERAL SETTINGS A page
displays (Figure 4-34).
3. Press the TPS Menu Key.
The Menu label turns magenta, and the EDIT VALUE label displays above the Top Knob.
4. Rotate the Top Knob to the desired value, ENABLE (On) or DISABLE (Off )
(Figure 4-35).
5. Press the MENU Button to exit.
NOTE
When the Altitude tape is disabled, the numerical
display of the selected altitude and altitude minimums
remain on. However, an installer can disable and
remove the Selected Altitude and Minimums Fields,
and the MINIMUMS Annunciation and Markers from
the display.
