Ground Track Marker - Aspen Avionics Evolution Backup Display EFD1000 Pilot's Manual

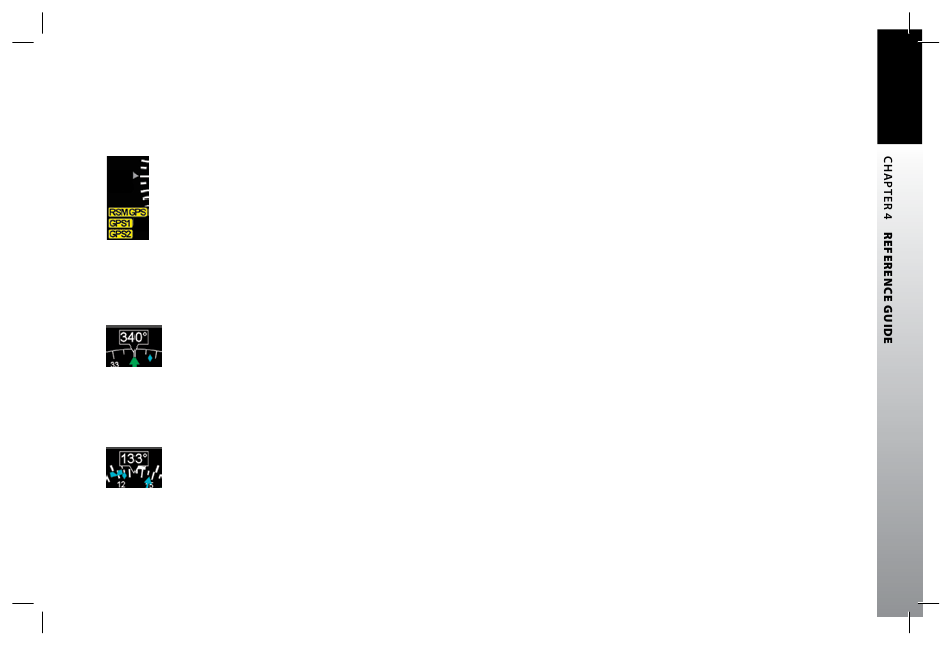

Figure 4-99
Invalid or Failed GPS Annunciations
Figure 4-100
ARC Compass Mode, Ground Track Marker
Figure 4-101
360° Compass Mode, Ground Track Marker
091-00027-001 REV A
091-00027-001 Rev A EBD Pilots Guide V&H .indb 31
When a GPS source's position data are invalid or no longer available, an amber
annunciation, GPS1, GPS2, or RSM GPS, is shown in the lower left corner of the
Navigation Display to indicate which has failed (Figure 4-99).

4.4.6. Ground Track Marker

When configured with a GPS that provides ground track data, a Ground Track Marker is
displayed on the compass scale to indicate the aircraft' s ground track. This marker may be
used to compensate for wind drift during flight (Figures 4-100 and 4-101). The Ground
Track Marker is removed from the display when ground track is not available or invalid.
