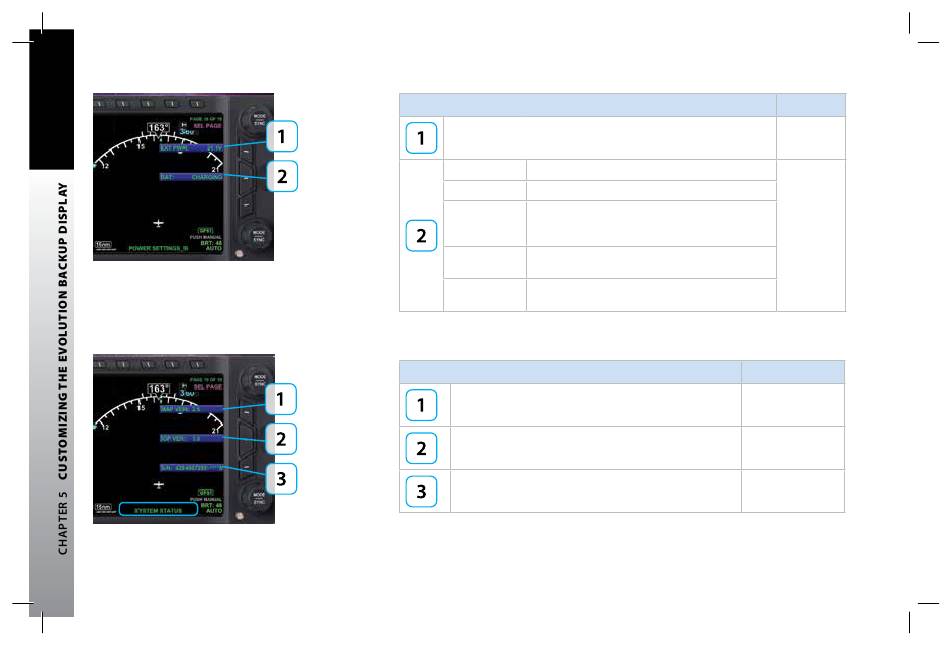

Figure 5-17
POWER SETTINGS B
Figure 5-18
SYSTEM STATUS
Page 5-10
091-00027-001 Rev A EBD Pilots Guide V&H .indb 10
KEY DESCRIPTION
External Power Source Voltage. Displays voltage level of input power.
Battery Status Description
Displays battery % charge.
##%
The battery has sufficient voltage and can accept
CHARGING charging, aircraft power is available, and the
temperature sensor is within limits (0°C to +55°C).
The battery voltage is less than 6 volts; i.e.
FAILED
insufficient for charging.
The connected battery and battery voltage are
READY
satisfactory.
Table 5-17
Menu – POWER SETTINGS
KEY DESCRIPTION
Main Application Processor Software Version
Input Output Processor Software Version
Unit Serial Number
Table 5-18
Menu – SYSTEM STATUS
Evolution Backup Display Pilot's Guide
OPTIONS
Status Only
Status Only
OPTIONS
Status Only
Status Only
Status Only
