2.3.4. Navigation Display

The right half of the Landscape EBD and bottom of the Portrait EBD is the Navigation
Display (Table 2-11 and Figure 2-21), which shows a wide range of navigation
information and flight data, including:
• Directional Gyro (DG) and Heading Bug.
• 360° and ARC Compass rose display modes.
• Numeric displays of current magnetic heading and selected heading (HDG).
• Ground Track Marker.
• Vertical Speed Indicator (VSI) tape.
• Rate of Turn Indicator.
• Situational Awareness Map display.
• GPS annunciations (TERM, APPR, WPT, and MSG).
• Caution annunciations for abnormal GPS status.
NAVIGATION DISPLAY
Navigation Display
44
Ownship Symbol
45
Rate of Turn Indicator
48
Ground Track Marker
49
50 Numerical Direction Indicator
52 Selected Heading (HDG) Field
53 Heading Bug
Table 2-11
Navigation Display Components
Page 2-24
091-00027-001 Rev A EBD Pilots Guide V&H .indb 24
56 Vertical Speed Numerical Value
57 Vertical Speed Indicator Tape
66 Bottom Knob State
67 Top Knob State
68 Hot Key Legend
69 Navigation Display Range
70 Navigation Display Declutter Level
Evolution Backup Display Pilot's Guide
68
50 52
48
49
53
45
57
44
69
70
Navigation Display Components
50 52
48
49
53
45
44
69
70
66
Portrait Navigation Display Components
091-00027-001 REV A
67
66

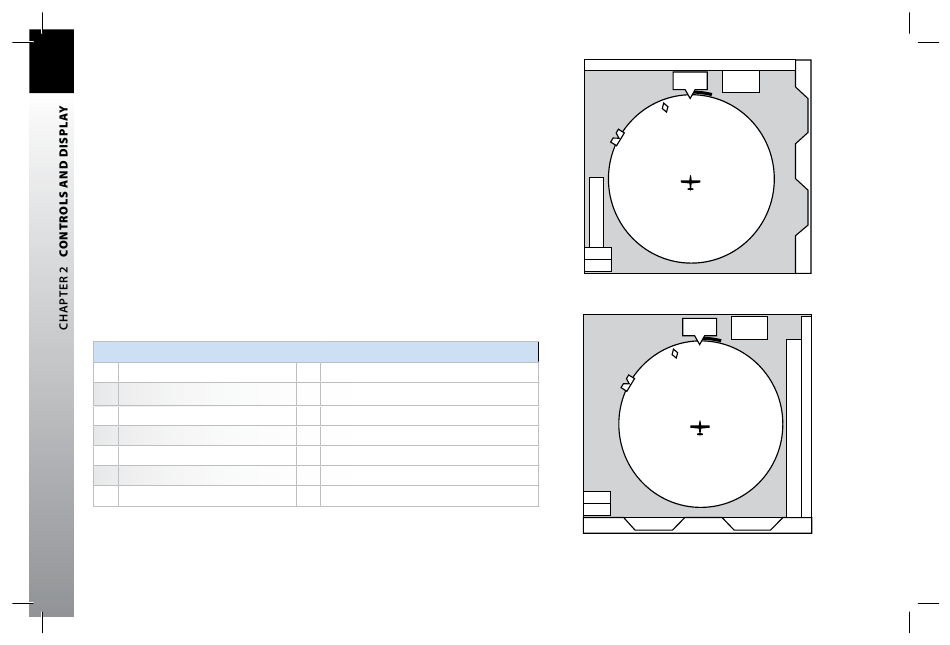

Figure 2-21
68
57
Figure 2-21a
