4.2.2. Airspeed Indicator
The Airspeed Indicator comprises a moving tape, airspeed bug, and numerical airspeed
value (drum). Textual Vspeeds, color Speed Bands, and Speed Markers are also rendered
on the moving tape (Figure 4-7).

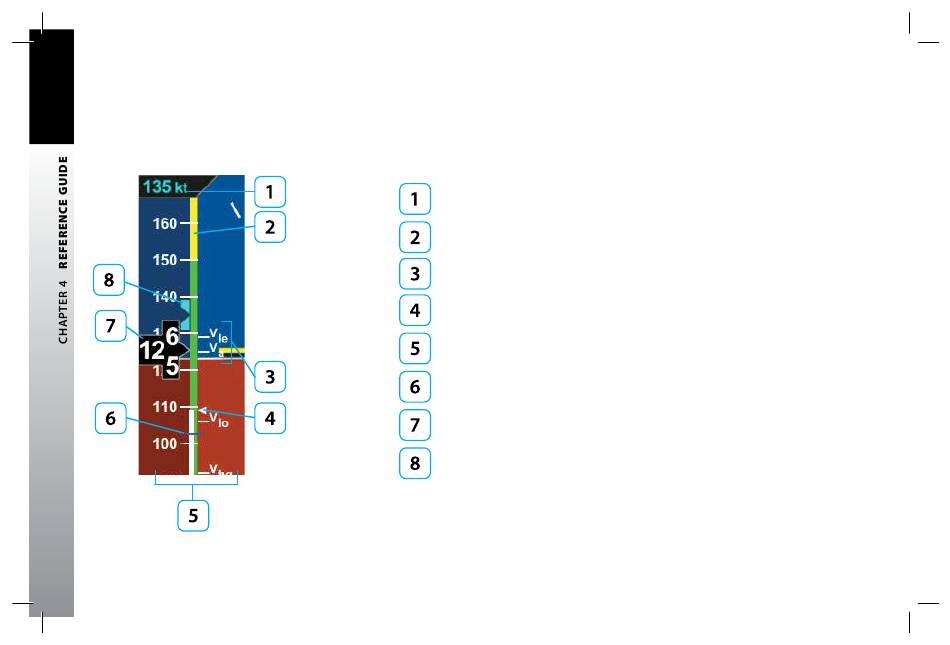

Figure 4-6
Airspeed Indicator
Evolution Backup Display Pilot's Guide
Selected Airspeed Field
Color Speed Bands
Textual Vspeeds
Initial Flap Extension Speed Marker
Airspeed Tape
Speed Marker
Numerical Airspeed Value (drum)
Selected Airspeed Bug
