NOTE
Pressing any other key, button, or knob cancels the
AHRS reset and clears the confirmation message.
091-00027-001 REV A
091-00027-001 Rev A EBD Pilots Guide V&H .indb 15

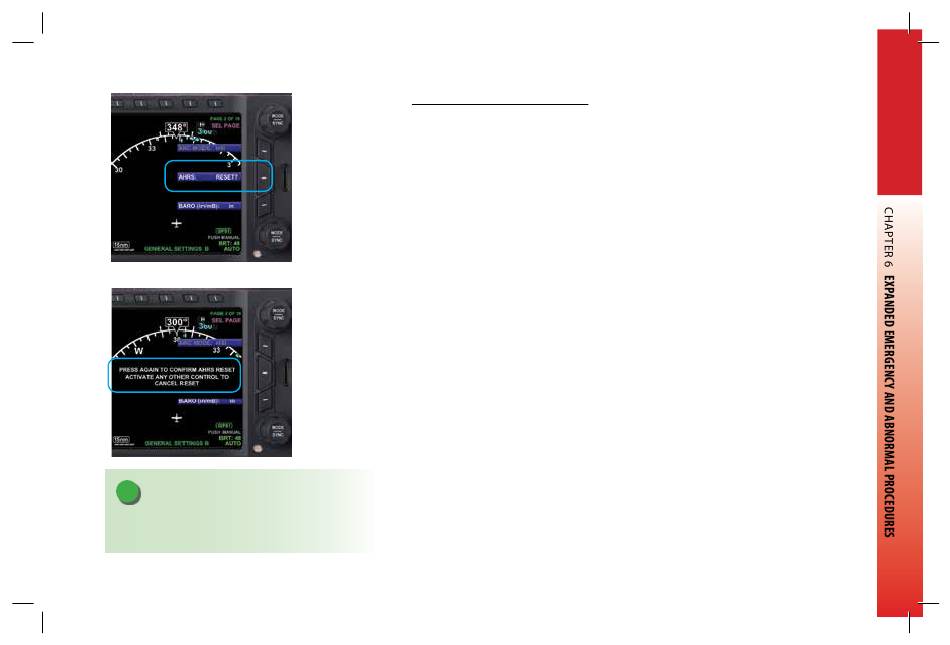

Perform an In-Flight AHRS Reset
1. Maintain straight and level flight.
2. Consider exiting IMC.
3. Fly by visual reference or by standby instruments.
4. Disconnect the autopilot.
5. Press the MENU Button.
6 Rotate the Top Knob to display the GENERAL SETTINGS A Menu page.
7. Press the AHRS RESET? Menu Key (Figure 6-7).
Figure 6-7
A confirmation message displays, prompting the user to confirm the reset
AHRS Reset Menu Key
request (Figure 6-8).
8. Press the AHRS Menu Key again to confirm the AHRS reset. The AHRS reset is
performed, and the confirmation messages clears.
9. Press the MENU Button to exit.
Figure 6-8
AHRS Reset
Confirmation
Message
Evolution Backup Display Pilot's Guide
Page 6-15
