Display Lighting - Aspen Avionics Evolution Backup Display EFD1000 Pilot's Manual

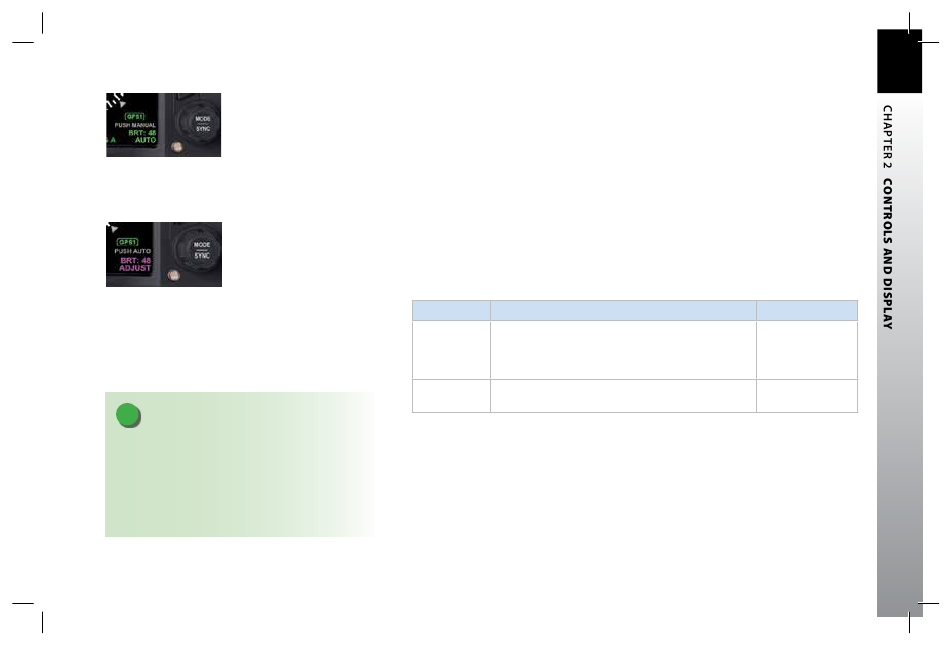

Figure 2-13
Display Brightness in BRT AUTO Mode
Figure 2-14
Display Brightness in BRT ADJUST Mode
NOTE
The BRT AUTO display brightness level is determined
by the amount of light detected by the photocell on
the front of the EBD. If a light is used to illuminate the
instrument panel, the photocell will respond, resulting
in a bright display. When this happens, use the manual
BRT ADJUST mode to reduce the brightness.
091-00027-001 REV A
091-00027-001 Rev A EBD Pilots Guide V&H .indb 15

2.2.4.2. Display Lighting

When the MENU button is pressed and the Menu is active, the Bottom Knob can be
used to adjust the EBD display brightness. Table 2-7
By default, the LCD brightness operates in AUTO mode, and is adjusted based on
photocell sensing of ambient lighting conditions. When the MENU is active and the
LCD is in the BRT AUTO mode, the word, "AUTO", and a brightness level of 1-100 will be
displayed in green to the left of the Bottom Knob (Figure 2-13).
To override the AUTO brightness setting, press the Bottom Knob once to switch to
the BRT ADJUST mode, and then rotate the Bottom Knob to set the brightness to the
desired level (Figure 2-14). To return to AUTO brightness control, press the Bottom
Knob again.
LCD MODE DESCRIPTION
LCD backlight intensity is automatically adjusted based
Automatic
on the ambient lighting conditions sensed by the
BRT AUTO
Automatic Dimming Photocell. The maximum intensity
in AUTO mode is 70%.
Allows the pilot to adjust the EBD display brightness
Manual
from 1-100%
BRT ADJUST
Table 2-7
Brightness Control
Evolution Backup Display Pilot's Guide
DISPLAY
Figure 2-13
Figure 2-14
Page 2-15
