1.1.2. Configuration Module (CM)

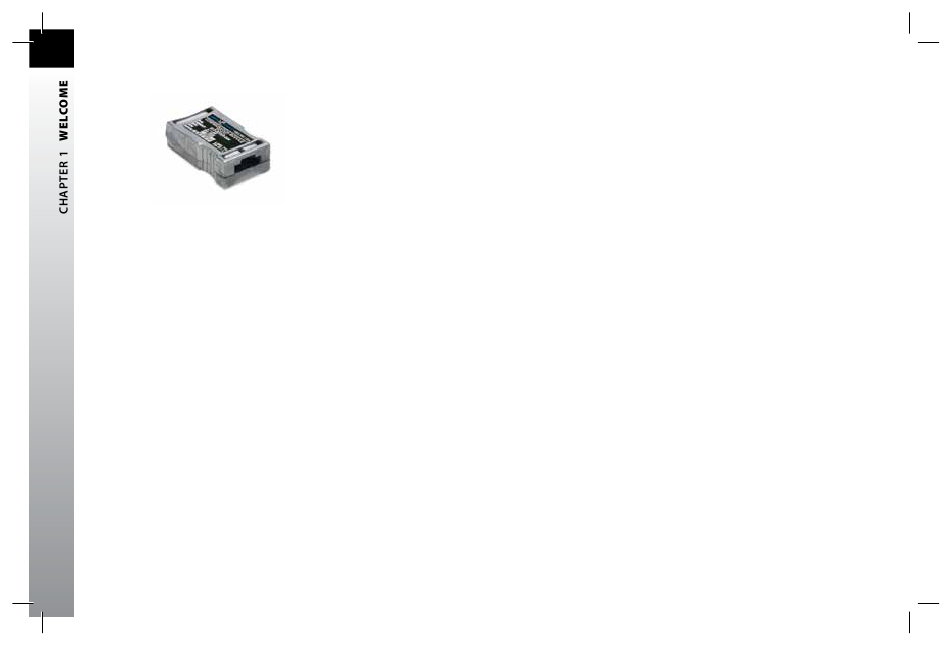

The Configuration Module (Figure 1-4), contains an EEPROM device that retains system
configuration and calibration data and provides two primary functions:
• Retains aircraft-specific configuration information, calibration data, and user
settings, allowing the EBD to be swapped for service purposes without re-entering
or re-calibrating the installation
• Contains a license key that configures the EBD software features
The CM is typically attached to the wire bundle coming out of the D-sub connector on
the display unit.
