4.2.1.1. Roll Scale

The Roll Scale is displayed at the top of the Attitude Indicator and comprises a moving
scale set against a fixed, white, triangle roll pointer. Tick marks are displayed at 0º, 10º,
20º, 30º, 45º, and 60º of roll. The 45º marks are triangles.

4.2.1.2. Pitch Scale

The pitch scale consists of minor pitch marks in 2.5º increments up to ±20º and major
pitch marks in 10º increments up to ±90º. Red chevrons come into view for nose-up

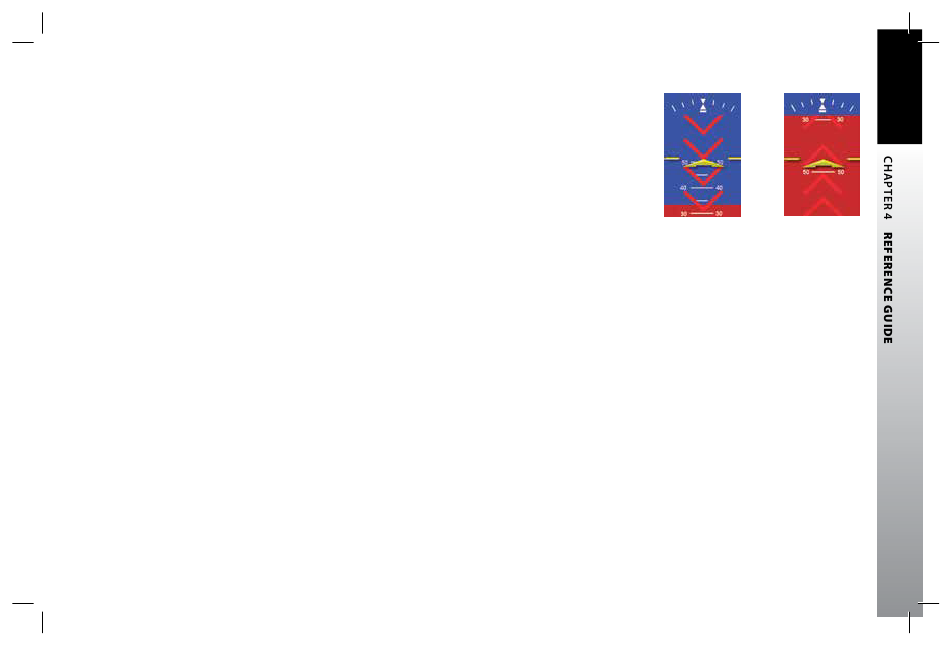

pitch angles of 15º or more (Figure 4-4), and nose-down pitch angles of 10º or less Figure 4-4 Figure 4-5
Pitch Markings Pitch Markings
(Figure 4-5). The pitch chevrons aid the pilot in unusual attitude recovery.
Large Pitch Down Large Pitch Up
The range of movement of the background sky and ground boundaries are limited so
that some sky or ground is always visible.

4.2.1.3. Slip/Skid Indicator

The Slip/Skid Indicator is the small white rectangle under the roll pointer. The Slip/
Skid Indicator moves left and right relative to the roll pointer in proportion to lateral
acceleration. The width of the rectangle is equivalent to the width of the ball in a
mechanical inclinometer.
Page 4-9
091-00027-001 REV A Evolution Backup Display Pilot's Guide
