1.1. System Overview
The EBD system typically consists of three components:
1.
Evolution Backup Display Unit (EBD)
2.
Configuration Module (CM)
3.
Remote Sensor Module (RSM)

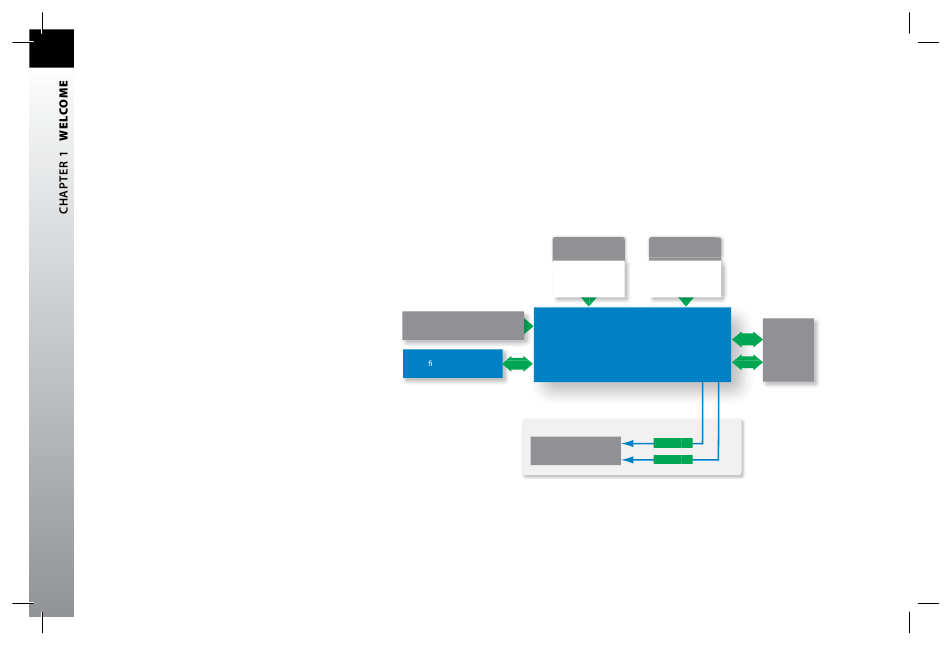

The system architecture in Figure 1-2 shows the relationships of the EBD, RSM, and CM.
Pitot
Existing Aircraft
Pitot Line
Aircraft Power
Evolution Backup
Con guration Module
12C
Optional Tone Generator
Digital GPS
Digital GPS
Sources
Figure 1-2
Evolution Backup Display Basic architecture
Evolution Backup Display Pilot's Guide
Static
Existing Aircraft
Static Line
Remote
SPI
Sensor
Display
Module
(RSM)
RS-232
ARINC 429
RS 232
091-00027-001 REV A
8/27/14 8:50 AM
