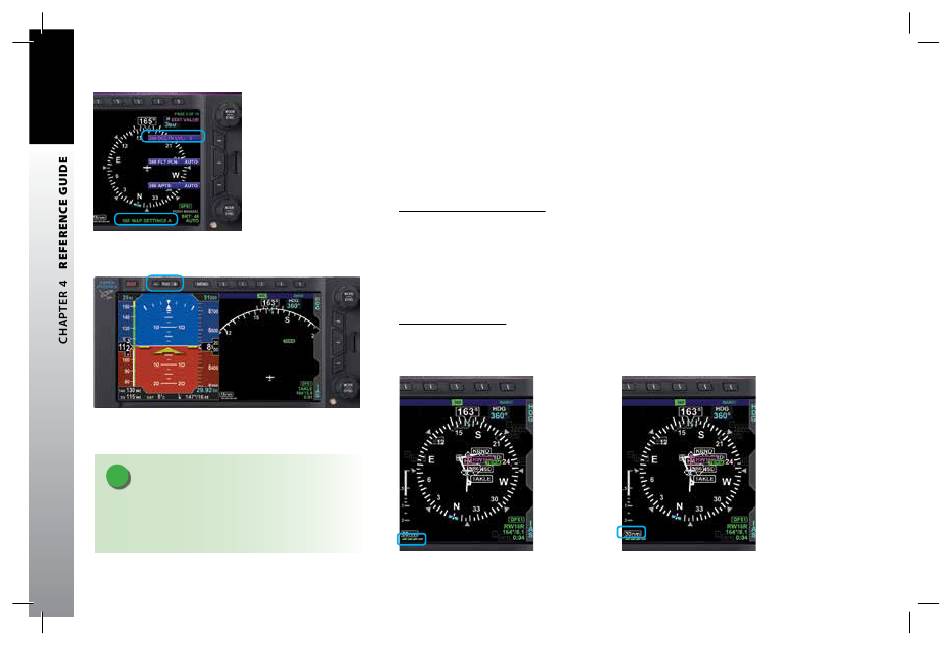

Figure 4-91
MAP Hot Key
Figure 4-93
Basemap Range Buttons
NOTE
When connected to a GPS that does not provide
compatible Basemap data, only OFF and FP ONLY
declutter levels are available.
Page 4-28
091-00027-001 Rev A EBD Pilots Guide V&H .indb 28
4.4.5.1. Basemap Declutter and Range
To turn the Basemap on or off, the pilot selects one of the declutter levels as described
in Section 5.2. The default map declutter level is Level 4. The map range corresponds
to the outside radius of the compass scale, 2, 3, 5, 10, 15, 20, 30, 40, 60, 80, 100, or 200
nautical miles from the aircraft Ownship Symbol. The default range is 15nm. Both the
map declutter level and range are pilot-adjustable.
Select Map Declutter Level
1.
Press the MENU Button and rotate the Top Knob to MAP SETTINGS page.
Press the DCLTR LVL Menu Key (Figure 4-91) and rotate the Top Knob to
2.
select the desired map declutter level.
3.
Press the MENU Button to exit.
The new Basemap display level appears above the Bottom Knob (Figure 4-92).
Change Map Range
Press the Range Up (RNG +) or the Range Down (RNG -) Button (Figure 4-93).
1.
until the desired range is displayed (Figure 4-94).
Figure 4-92
New Basemap
Display Level
Evolution Backup Display Pilot's Guide
Figure 4-94
New Basemap
Range
091-00027-001 REV A
8/27/14 8:51 AM
