Chapter 2

Controls and Display

The Evolution Backup Display (Figure 2-1) is a flat-panel
LCD primary flight instrument that presents the pilot
with all of the information from the traditional six-pack of
mechanical instruments: Airspeed, Attitude, Altitude, Turn
Coordinator, Directional Gyro (DG), and Vertical Speed
Indicator (VSI). Modern technology and standard EFIS
symbology enable the consolidation of all six instruments
into a single display, tightening the pilot's instrument scan
and reducing pilot workload.
The display is divided into three parts: Attitude Display, a Data Bar below
the Attitude Display, and Navigation Display.
This chapter gives an overview of all the instruments, information, and
controls of the EBD. Table 2-1 and Figure 2-3 identify the controls and
display orientation (see Chapter 4, Reference Guide for more details).
091-00027-001 REV A
091-00027-001 Rev A EBD Pilots Guide V&H .indb 1
Evolution Backup Display Pilot's Guide

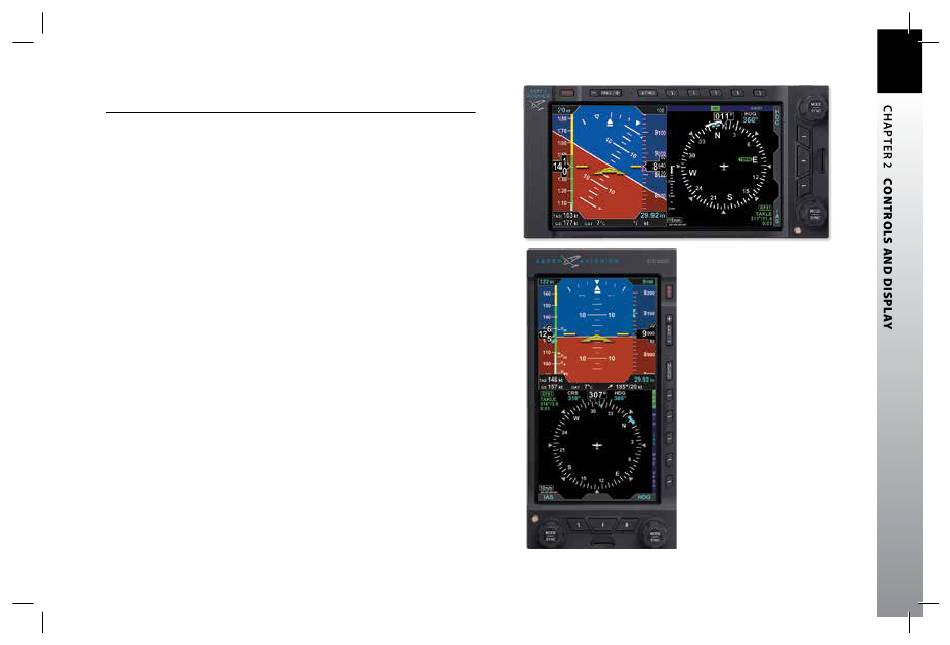

Figure 2-1
Evolution Backup Display, Landscape
FIigure 2-1a
Evolution Back up Display Basic, Portrait
Page 2-1
8/27/14 8:51 AM
