Item
Supported services
Interface LEDs

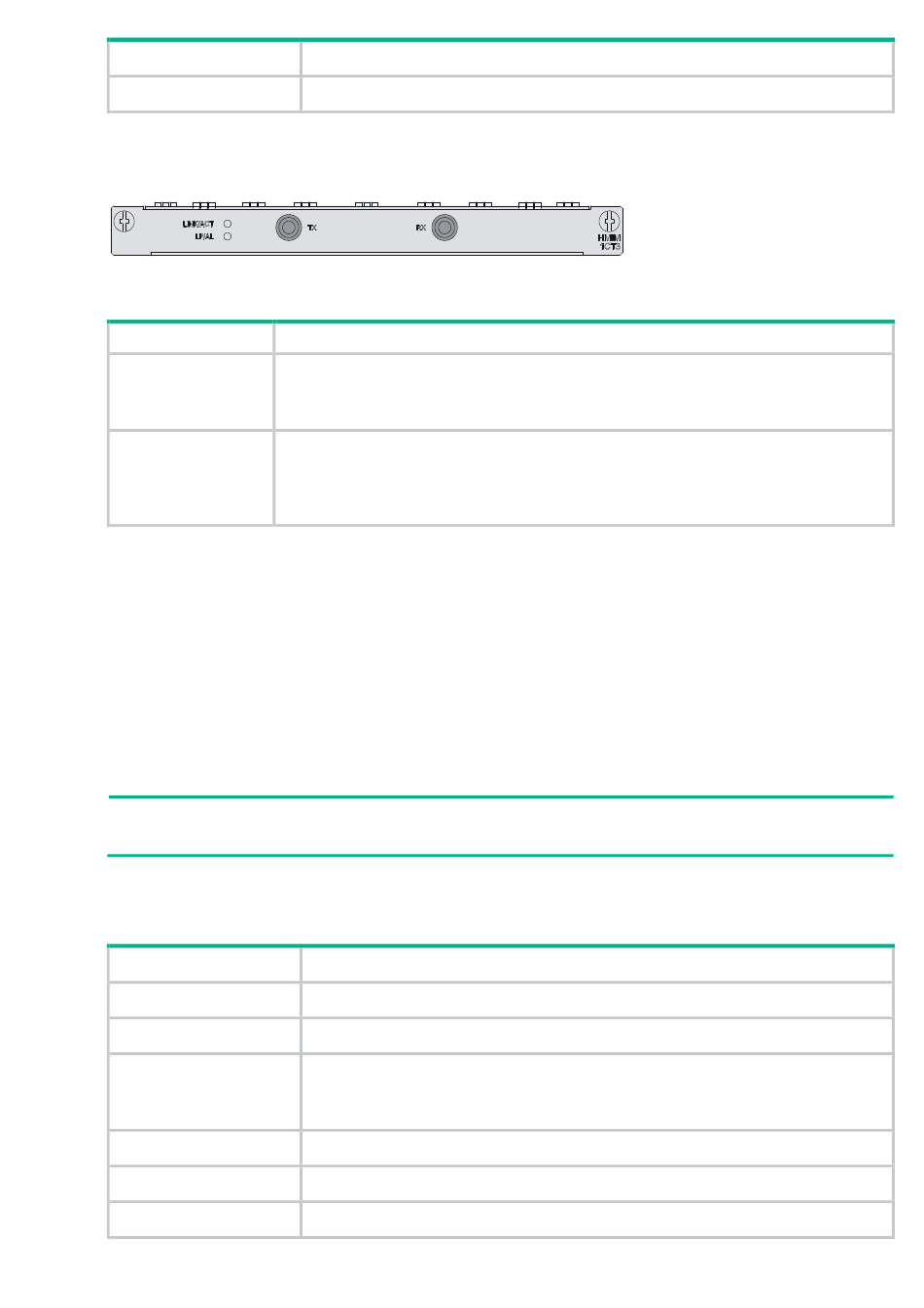

Figure 109 HMIM-1CT3 panel
Table 145 LED description
LED
LINK/ACT
LP/AL
Interface cables and connection methods
For more information about T3 interface cables and connection methods, see

HMIM-1E3T3

Introduction
HMIM-1E3T3 refers to the 1-port unchannelized E3/T3 interface module. The interface on the
module operates in T3 mode. It can transmit, receive, and handle one channel of T3 traffic, and
provide access for T3 data flows.
NOTE:
T3 represents the tertiary group rate (44.736 Mbps) of T system in the TDM system.
Interface specifications
Table 146 Interface specifications
Item
Connector type
Number of connectors
Interface standard
Interface rate
Cable type
Operating mode
Specification
T3 leased line
Description
•
On means carrier signal has been received.
•
Flashing means data is being received or/and transmitted.
•
Off means no carrier signal has been received.
•
On means the interface is in a loopback.
•
Off means no loopback or alarm is present.
•
Flashing means an alarm indication signal (AIS), loss of frame alignment (LFA)
signal, or remote alarm indication (RAI) signal is present.
Specification
SMB
2
•
G.703
•
G.704
•
G.751
44.736 Mbps
E3/T3 cable (75-ohm coaxial cable)
T3
93
