Hmim-8E1T1/Hmim-8E1T1-F - HPE FlexNetwork MSR Series Manual

Item
Interface standard
Interface rate
cable type
Operating mode
Supported services
Interface LEDs

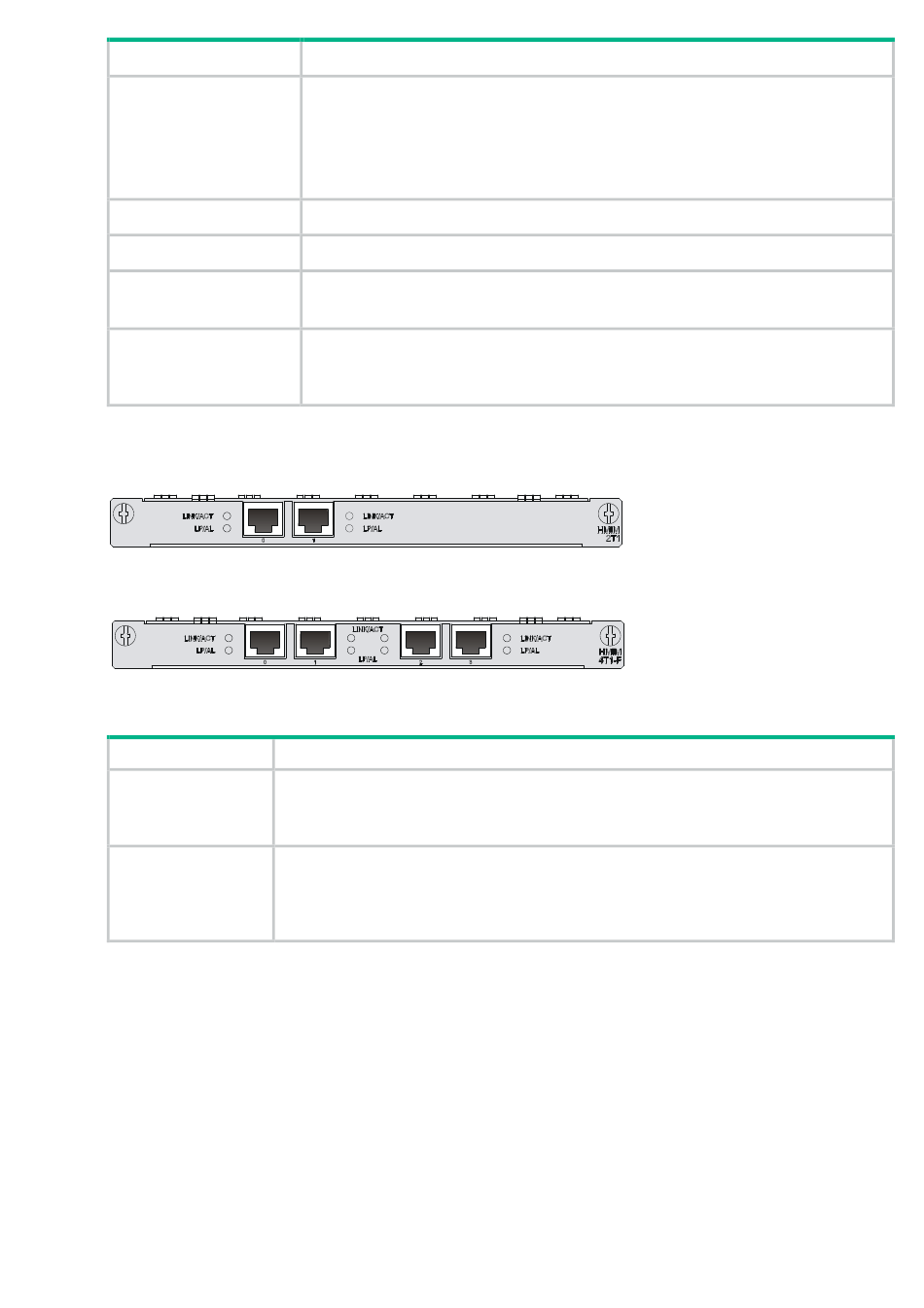

Figure 103 HMIM-2T1 panel
Figure 104 HMIM-4T1-F panel
Table 139 LED description
LEDs
LINK/ACT
LP/AL
Interface cables and connection methods
For more information about T1 interface cables and connection methods, see

HMIM-8E1T1/HMIM-8E1T1-F

Introduction
•
HMIM-8E1T1 module
The 8-port channelized E1/CE1/T1/CT1/PRI interface module transmits, receives, and handles
T1 data streams. In addition, you can use the module for CT1 access and ISDN PRI. The
module allows arbitrary grouping of 31 channels.
•
HMIM-8E1T1-F module
Specification
•
G.703/T1 102
•
G.704
•
AT & T TR 54016
•
AT & T TR 62411
•
ANSI T1.403
1.544 Mbps
T1 cable (100-ohm shielding network cable)
CT1, ISDN PRI (only supported by the HMIM-2T1)
FT1 (only supported by the HMIM-4T1-F)
•
Backup
•
Terminal access service
•
ISDN PRI (only supported by the HMIM-2T1)
Description
•
On means the carrier signal has been received.
•
Off means no carrier signal has been received.
•
Flashing means data is being transmitted or/and received.
•
On means the interface is in a loopback.
•
Off means no loopback or alarm is present.
•
Flashing means an alarm indication signal (AIS), loss of frame alignment (LFA)
signal, or remote alarm indication (RAI) signal is present.
88
"T1 interface."
